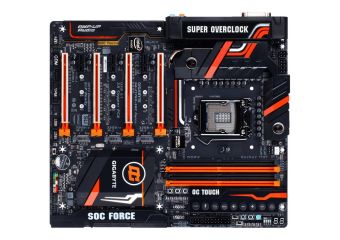

Gigabyte GA-Z170X-SOC FORCE - 1.0 - bundkort - udvidet ATX - LGA1151 Socket - Z170

Producent: GIGABYTE
Produkt nr: GA-Z170X-SOC FORCE
EAN: 889523002490
Varenummer: 973007
billigst-pricerunner
Producent: GIGABYTE
Produkt nr: GA-Z170X-SOC FORCE
EAN: 889523002490
Varenummer: 973007

Varen kan pt. ikke skaffes eller er udgået. Kontakt evt. kundeservice for et alternativ

Billigste fragt 0,00 kr.

Gratis fragt

(Gælder op til 20 kg)

Læs mere her
Varen kan pt. ikke skaffes eller er udgået.
Kontakt evt. kundeservice for et alternativ.}
Producent: GIGABYTE
Produkt nr: GA-Z170X-SOC FORCE
EAN: 889523002490
Varenummer: 973007

Varen kan pt. ikke skaffes eller er udgået. Kontakt evt. kundeservice for et alternativ

Billigste fragt 0,00 kr.

Gratis fragt

(Gælder op til 20 kg)

Læs mere her
Produktbeskrivelse Gigabyte GA-Z170X-SOC FORCE - 1.0 - bundkort - udvidet ATX - LGA1151 Socket - Z170
Produkttype Bundkort - udvidet ATX
Chipsættype Intel Z170
Processor-socket 1 x LGA1151 Socket
Kompatible processorer Pentium, Celeron, Core i5, Core i3, Core i7
Max RAM-størrelse 64 GB
RAM understøttet 4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte 6 x SATA-600 (RAID), 2 x SATA-600, 3 x SATA Express port, 3 x M.2
USB / FireWire porte 1 x USB-C + 1 x USB 3.1 + 5 x USB 3.0 + 4 x USB 2.0 + (4 x USB 3.0 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse 512 MB
Audio HD Audio (8-kanaler)
LAN Gigabit Ethernet

Produktdatablad
Produkttype Bundkort - udvidet ATX
Chipsættype Intel Z170
Processor-socket LGA1151 Socket
Max antal processorer 1
Kompatible processorer Pentium, Celeron, Core i5, Core i3, Core i7
Maks. størrelse 64 GB
Teknologi DDR4
Bus Clock 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Maks. allokeret RAM-størrelse 512 MB
Type HD Audio (8-kanaler)
Audio codec Realtek ALC1150
Overensstemmelsesstandarder High Definition Audio
Netværks interfaces Gigabit Ethernet
Ekspansionsåbninger 1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (x16 modus (x8 modus hvis naboåbning er optaget)) ¦ 2 x PCIe 3.0 x16 (x8-modus) ¦ 3 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7pin Serial ATA, 3 x M.2, 3 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder
RAID-egenskaber Intel Smart Response Technology
Interface 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 5 x USB 3.0 ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 1 x USB 3.1 ¦ 1 x USB-C ¦ 1 x TOSLINK ¦ 1 x DVI-D ¦ 1 x Mini DisplayPort
Interne interfaces 4 x USB 2.0 - intern stik ¦ 4 x USB 3.0 - intern stik ¦ 1 x audio - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 2 x USB 2.0 - Type A ¦ 1 x seriel - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
Hardwareovervågning CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning
Hardware egenskaber AutoGreen, NVIDIA 3-way SLI Technology Support, Intel Extreme Hukommelses Profil (XMP) support, NVIDIA 2-way SLI Technology Support, Ultra Durable, NVIDIA 4-way SLI Technology Support, AMD CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, AMD 4-vejs CrossFireX teknologisupport, Easy RAID Installer, GIGABYTE AMP-UP Audio, GIGABYTE OC Ignition, GIGABYTE OC PCIe Switch, GIGABYTE Smart Switch, GIGABYTE OC Touch, Q-Flash Plus, Turbo B-Clock, Water Cooling Ready Heatsink Design, LED Trace Path, 22 Phase Power Design
Udstyr inkluderet I/O- bagvæg
Medfølgende ledninger 4 x Seriel ATA kabel ¦ 1 x SLI bro ¦ 1 x 3-vejs SLI bro ¦ 1 x 4-vej SLI bro ¦ 1 x CrossFire intern bro
Med software Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, SBX Pro Studio, GIGABYTE Fast Boot, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE HW OC APP
Overensstemmelsesstandarder Plug and Play, ACPI 5.0
Bredde 30.5 cm
Dybde 26.4 cm

The Intel USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering 16 Gb/s of total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the reversible USB Type-C and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
The GIGABYTE Z170X-SOC Force motherboard features optimized support for NVIDIA SLI and AMD CrossFire in 4 way configuration setups. This extreme design is optimized for overclockers with the innovative OC Brace to stabilize the graphics cards without the need of a system case, ensuring their proper connectivity to the motherboard.
With three PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the triple M.2 provides an ideal storage solution as it also supports RAID modes.
GIGABYTE OC Touch includes a range of hardware overclocking buttons directly on the motherboard, making overclocking on the fly extremely fast and easy.
