Produktdatablad |
|
| Produkttype |

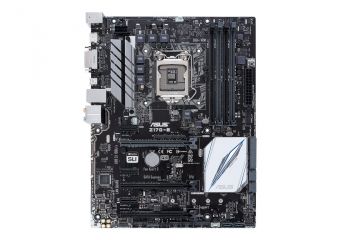

Bundkort - ATX |
| Chipsættype |
Intel Z170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 2133 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Maks. allokeret RAM-størrelse |
512 MB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single kort: x16 mode) ¦ 1 x PCIe 3.0 x16 (x2-modus) ¦ 3 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID-egenskaber |
Intel Smart Response Technology |
| Interface |
1 x HDMI ¦ 1 x DVI-D ¦ 2 x USB 3.0 ¦ 1 x PS/2-tastatur/mus ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x USB-C ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (frontsurround) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud - mini-jack |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.0 - intern stik ¦ 1 x Thunderbolt - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x seriel - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, Flersproget BIOS, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3,0 support, SMBIOS 3,0 support |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
Jack retasking, ASUS Anti-Surge Protection, 4 Phase Power Design, GPU Boost, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Clear Video HD Technology, AMD CrossFireX-teknologisupport, ASUS DIGI+ Power Control, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, anti-popfunktion, Turbo LAN, ASUS Crystal Sound 2, ASUS Fan Xpert 3, Dual Intelligent Processors 5, LANGuard, USB 3.1 Boost, ASUS PRO Clock Technology, ASUS 5X Protection II |
| Udstyr inkluderet |
1 x M.2 skrue, I/O-bagdække |
| Medfølgende ledninger |
2 x Seriel ATA kabel ¦ 1 x SLI bro |
| Med software |
Drivers & Utilities, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Antivirus (OEM version), Mobo Connect, PC Cleaner, Media Streamer |
| Overensstemmelsesstandarder |
Plug and Play |
| Bredde |
30.5 cm |
| Dybde |
23.4 cm |
