Produktbeskrivelse
|

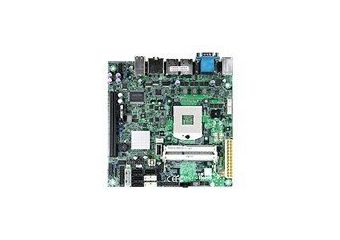

SUPERMICRO X9SCV-Q - bundkort - mini ITX - Socket G2 - QM67
|
Produkttype
|
Bundkort - mini ITX
|
Chipsættype
|
Mobile Intel QM67 Express / Nuvoton NCT6776F
|
Processor-socket
|
1 x Socket G2
|
Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
Max RAM-størrelse
|
16 GB
|
RAM understøttet
|
2 SO DIMM-åbninger - DDR3, ikke-ECC, ikke bufferet
|
Lagringsporte
|
2 x SATA-600 (RAID), 4 x SATA-300 (RAID)
|
USB / FireWire porte
|
7 x USB 2.0 + (4 x USB 2.0 via samlekasser)
|
Audio
|
HD Audio
|
LAN
|
2 x Gigabit Ethernet
|
Microsoft Certification
|
Kompatibel med Windows 7
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Produkttype |
Bundkort - mini ITX |
Chipsættype |
Mobile Intel QM67 Express / Nuvoton NCT6776F |
Processor-socket |
Socket G2 |
Max antal processorer |
1 |
Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
Maks. størrelse |
16 GB |
Teknologi |
DDR3 |
Bus Clock |
1333 MHz, 1066 MHz, 800 MHz |
Hastighed |
PC3-10600, PC3-8500, PC3-6400 |
Understøttet RAM-integritetskon |
Ikke-ECC |
Registreret eller buffer |
Ikke bufferet |
Type |
HD Audio |
Audio codec |
Realtek ALC889 |
Overensstemmelsesstandarder |
High Definition Audio |
Netværk controller |
Intel 82574L / Intel 82579LM |
Netværks interfaces |
2 x Gigabit Ethernet |
Ekspansionsåbninger |
1 x CPU ¦ 2 x SO-DIMM 204-pins (1.5 V) ¦ 1 x PCIe 2.0 x16 |
Grænseflade (lagring) |
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder - RAID 0 / RAID 1 ¦ SATA-300 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Interface |
2 x LAN (Gigabit Ethernet) ¦ 6 x USB 2.0 ¦ 2 x HDMI ¦ 1 x VGA ¦ 2 x seriel |
Interne interfaces |
1 x USB 2.0 - Type A ¦ 4 x USB 2.0 ¦ 1 x seriel ¦ 1 x SPDIF ud |
BIOS-type (Basic Input/Output System) |
AMI |
BIOS-egenskaber |
ACPI 1.0 understøttet, ACPI 2.0 understøttet, SMBIOS 2.3 understøttet, UEFI BIOS |
Hardwareovervågning |
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, systemspænding, CPU kerne-spænding |
Hardware egenskaber |
Diagnose LED's, chassis intrusion styring, WatchDog Timer, Trusted Platform Module (TPM) 1.2, Intel Active Management Technology (Intel AMT) |
Med software |
Drivers & Utilities, SuperO Doctor III |
Kompatibel med Windows 7 |
Udstyr og software der er "Kompatibel med Windows 7" har Microsofts forsikring i at disse produkter har bestået kompatibilitets- og pålidelighedsprøver med 32-bit og 64-bit Windows 7. |
Overensstemmelsesstandarder |
Plug and Play, ACPI 2.0 |
Bredde |
17 cm |
Dybde |
17 cm |
Pakketype |
Detailsalg |
Service & Support |
Begrænset garanti - arbejde - 3 år ¦ Begrænset garanti - reservedele - 1 år |
Supermicro motherboards based on the Intel 2nd generation core processor series. With features that include PCI-E 2.0 slot(s), DDR3 memory, dual LAN ports, SATA3 ports with RAID support, multiple USB ports, integrated graphics/audio, and TPM header ready, and these boards are Supermicro's premium desktop motherboards that demonstrate huge leaps in quality, performance, and visual processing capabilities.
