Produktbeskrivelse
|

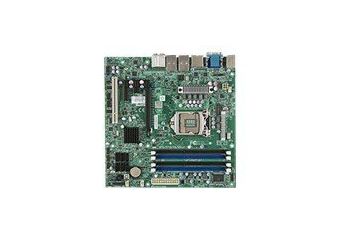

SUPERMICRO C7Q67 - bundkort - micro-ATX - LGA1155 sokkel - Q67
|
Produkttype
|
Bundkort - micro-ATX
|
Chipsættype
|
Intel Q67 Express
|
Processor-socket
|
1 x LGA1155 sokkel
|
Kompatible processorer
|
Core i5, Core i3, Core i7
|
Max RAM-størrelse
|
32 GB
|
RAM understøttet
|
4 DIMM åbninger - DDR3, ikke-ECC, ikke bufferet
|
Lagringsporte
|
2 x SATA-600 (RAID), 4 x SATA-300 (RAID), 6 x SATA
|
USB / FireWire porte
|
2 x USB 3.0 + 4 x USB 2.0 + (8 x USB 2.0 via samlekasser)
|
Audio
|
HD Audio (8-kanaler)
|
LAN
|
2 x Gigabit Ethernet
|
Microsoft Certification
|
Kompatibel med Windows 7
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Produkttype |
Bundkort - micro-ATX |
Chipsættype |
Intel Q67 Express |
Processor-socket |
LGA1155 sokkel |
Max antal processorer |
1 |
Kompatible processorer |
Core i5, Core i3, Core i7 |
Maks. størrelse |
32 GB |
Teknologi |
DDR3 |
Bus Clock |
1333 MHz, 1066 MHz, 800 MHz |
Hastighed |
PC3-10600, PC3-8500, PC3-6400 |
Understøttet RAM-integritetskon |
Ikke-ECC |
Registreret eller buffer |
Ikke bufferet |
Type |
HD Audio (8-kanaler) |
Audio codec |
Realtek ALC889 |
Overensstemmelsesstandarder |
High Definition Audio |
Netværk controller |
Intel 82574L / Intel 82579LM |
Netværks interfaces |
2 x Gigabit Ethernet |
Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 240-pins (1.5 V) ¦ 1 x PCIe 2.0 x16 ¦ 1 x PCIe 2.0 x4 ¦ 1 x PCIe x1 ¦ 1 x PCI (5 V) |
Grænseflade (lagring) |
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder - RAID 0 / RAID 1 ¦ SATA-300 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Interface |
2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x VGA ¦ 2 x HDMI ¦ 1 x seriel ¦ 2 x USB 3.0 ¦ 1 x PS/2-tastatur/mus |
Interne interfaces |
1 x SPDIF ¦ 8 x USB 2.0 ¦ 3 x seriel |
Ekstra tilslutninger (valgfrit) |
8 x USB 2.0 |
BIOS-type (Basic Input/Output System) |
AMI |
BIOS-egenskaber |
ACPI 1.0 understøttet, med DMI 2.3 understøttelse, ACPI 2.0 understøttet |
Hardwareovervågning |
CPU kernetemperatur, takometer til CPU-blæser, CPU kerne-spænding |
Sov/ Vågn |
Aktivering af tastatur, ringningsaktiveret (WOR) [wake on ring] |
Hardware egenskaber |
Chassis intrusion styring, Trusted Platform Module (TPM) 1.2 |
Med software |
Drivers & Utilities, SuperO Doctor III |
Kompatibel med Windows 7 |
Udstyr og software der er "Kompatibel med Windows 7" har Microsofts forsikring i at disse produkter har bestået kompatibilitets- og pålidelighedsprøver med 32-bit og 64-bit Windows 7. |
Overensstemmelsesstandarder |
Plug and Play, ACPI 2.0, ACPI, RoHS |
Bredde |
24.4 cm |
Dybde |
24.4 cm |
Service & Support |
Begrænset garanti - arbejde - 3 år ¦ Begrænset garanti - reservedele - 1 år |
Supermicro's premium desktop motherboards demonstrate huge leaps in quality, performance, and visual processing capabilities, thus bringing server grade quality to the desktop. The motherboards include up to 20% more components to ensure the best signal integrity; highest quality all-solid Japanese capacitors. Incredible processing speed gains come courtesy of the Intel 2nd Generation Core processor, built-in visual processing hardware. Media processing capabilities are enhanced with HD audio, four SATA 3.0 ports, and two USB 3.0 ports. These features provide the overclocking professional and extreme gaming enthusiast with the best in extended performance and the ultimate in flexibility.
