| Produktbeskrivelse
|

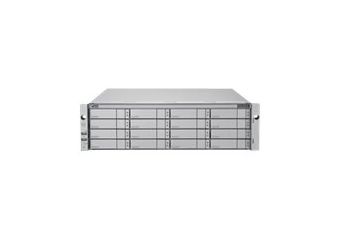

Promise Vess R2600xiD - harddisk-array
|
| Enhedstype
|
Harddisk-array
|
| Pakningstype
|
Rackversion - 3U
|
| Totale array-kapacitet
|
32 TB
|
| Grænseflade
|
iSCSI (1 GbE), iSCSI (10 GbE)
|
| Host-kanaler
|
12
|
| Installeret udstyr/antal moduler
|
8 (installeret) / 16 (maks.)
|
| Understøttede drev
|
SATA-600 / SAS-2
|
| Lokalisering
|
EMEA
|
| Controller for lagring
|
RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 30, 50, 1E, 0+1, 60
|
| Controller for lagring Antal
|
2
|
| Harddisk
|
8 x 4 TB HDD SAS - hot-swap
|
| OS nødvendig
|
Red Hat Linux, SuSe Linux, Microsoft Windows 2003, Microsoft Windows Server 2008, CentOS, Ubuntu, Microsoft Windows Vista / 7, VMware ESXi 5, Microsoft Windows Server 2012, Citrix XenServer
|
| Effekt
|
AC 120/230 V - 50/60 Hz
|
| Overskudsspænding
|
Ja
|
| Dimensioner (B x D x H)
|
44.7 cm x 50.7 cm x 13.1 cm
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Harddisk-array |
| Pakningstype |
Rackversion - 3U |
| Lokalisering |
EMEA |
| Installeret udstyr/antal moduler |
8 |
| Understøttet udstyr/antal moduler |
16 |
| Understøttede drev |
SATA-600 / SAS-2 |
| Totale array-kapacitet |
32 TB |
| HDD array Extern Grænseflade |
iSCSI (1 GbE), iSCSI (10 GbE) |
| Host-kanaler |
12 |
| CPU |
2 x 1.1 GHz |
| Type |
RAID |
| Antal installeret |
2 |
| Interfacetype |
SATA 6Gb/s / SAS 6Gb/s |
| Cache-/Bufferstørrelse (Maks.) |
2 GB (installeret) / 16 GB (maks.) |
| RAID-niveau |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, RAID 1E, RAID 0+1, RAID 60 |
| Antal installeret |
2 |
| Type |
HDD - hot-swap |
| Kapacitet |
8 x 4 TB |
| Grænsefladetype |
SAS |
| Udvidelses-båse |
16 (total) / 8 (fri) x hot-swap - 3.5" |
| Interface |
8 x Ethernet 1000Base-T ¦ 2 x Ethernet 1000Base-T (administration) - RJ-45 ¦ 2 x seriel (administration) - RJ-11 ¦ 4 x Ethernet 10Gb - SFP+ |
| OS nødvendig |
Red Hat Linux, SuSe Linux, Microsoft Windows 2003, Microsoft Windows Server 2008, CentOS, Ubuntu, Microsoft Windows Vista / 7, VMware ESXi 5, Microsoft Windows Server 2012, Citrix XenServer |
| Egenskaber |
Native Command Queuing (NCQ), Tagged Command Queuing (TCQ), hot-swappable blæsere |
| Medfølgende ledninger |
1 x seriel adapter |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret, UL, VCCI, C-Tick, BSMI, cUL, CB, KCC |
| Strømenhed |
3 x intern strømforsyning - hot-plug |
| Maks. antal understøttet |
4 |
| Overskudsspænding |
Ja |
| Skema til overskudsspænding |
N+1 |
| Nødvendig spænding |
AC 120/230 V - 50/60 Hz |
| Strømforsyning |
250 Watt |
| 80 PLUS certificering |
80 PLUS |
| Bredde |
44.7 cm |
| Dybde |
50.7 cm |
| Højde |
13.1 cm |
| Service & Support |
Begrænset garanti - 3 år |
| Min. driftstemperatur |
5 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
10 - 80 % (ikke-kondenserende) |
Any service interruption can really cost your business! With the Vess R2000 Series, customers have a cost effective, dual controller, high-availability NAS solution in one single box which ensures uninterrupted services. Conventional single controller based NAS solutions cannot provide uninterrupted services. In order to achieve high-availability, those NAS solutions must deploy a high-availability cluster combining several devices which is significantly more expensive.
The Vess R2000 Series is a unified storage solution which offers impressive performance while simplifying administration and adding flexibility. Choose to use an 8Gbps FC SAN for heavy I/O applications like video editing, high performance computing or scientific research. Use the 1Gbps &10GBps iSCSI SAN for less intensive I/O applications like data backup or remote replication. And use NAS for video surveillance, virtualized environments or general file sharing applications.
