Produktbeskrivelse
|

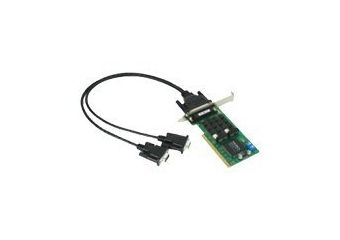

Moxa CP-132UL-I V2 - seriel adapter - PCI - RS-422/485
|
Enhedstype
|
Seriel adapter
|
Model
|
Indstikskort - lavprofil
|
Grænseflade (bus) type
|
PCI
|
Porte
|
RS-422/485
|
Dataforbindelsesprotokol
|
RS-422, RS-485
|
Dataoverførselshastighed
|
921.6 Kbps
|
Systemkrav
|
UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows 98/ME/2000/XP, Microsoft Windows Vista
|
Produktdatablad |
|
Enhedstype |
Seriel adapter |
Model |
Indstikskort - lavprofil |
Grænseflade (bus) type |
PCI |
Porte |
RS-422/485 |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
RS-422, RS-485 |
Dataoverførselshastighed |
921.6 Kbps |
Egenskaber |
2 KV Optical Isolation Protection |
Interface |
1 x RS-422/485 - 25-pin D-Sub (DB-25) ¦ 2 x RS-422/485 - 9-pin D-Sub (DB-9) (på kabel) |
Medfølgende ledninger |
1 x serielt kabel (ekstern) |
OS nødvendig |
UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows 98/ME/2000/XP, Microsoft Windows Vista |
The CP-132UL V2 Series of Smart Multiport Serial Boards is designed for Industrial Automation system integrators for long distance multi-point PC-based data acquisition applications.
RS-485 communication requires precise timing control to enable and disable the line driver. Powered by Moxa's Turbo Serial Engine chip that comes with on-chip ADDC (Automatic Data Direction Control), using CP-132UL V2 to transmit RS-485 packets is as easy as using RS-232.
The CP-132UL V2 Universal PCI Multiport Serial Board has 2 RS-422/485 serial ports, each capable of data rates up to 921.6 Kbps. In RS-485 mode, the serial port can connect up to 31 daisychained RS-485 devices within a range of 1.2 km. For long distance RS-485 communication, 2 KV isolation protection is available to prevent equipment damage.
