| Produktbeskrivelse
|

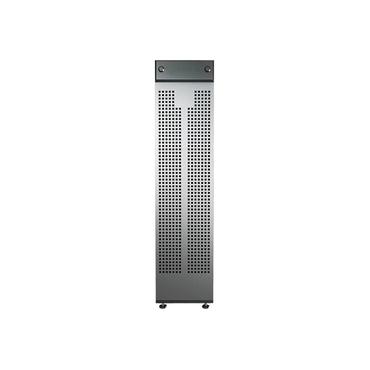

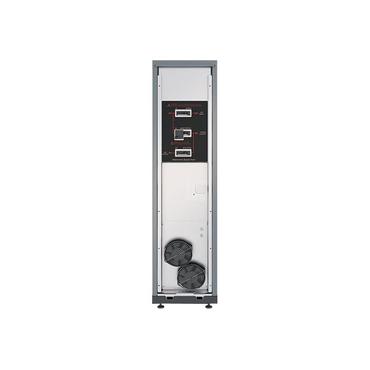

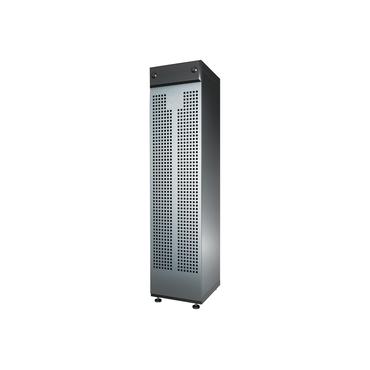

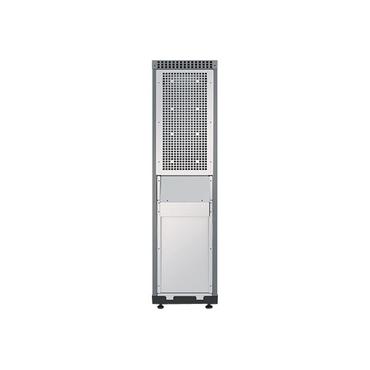

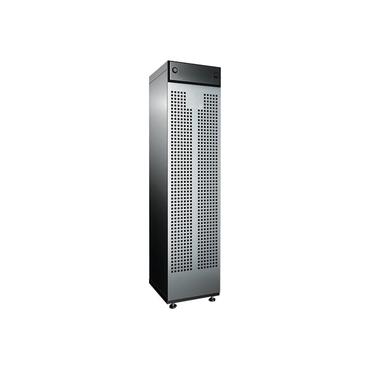

MGE Input Transformer MCCB - transformator
|
| Enhedstype
|
Transformator - ekstern
|
| Vægt
|
331 kg
|
| Indgangspænding
|
AC 480 V
|
| Udgangspænding
|
AC 208 V
|
| Dimensioner (B x D x H)
|
35.6 cm x 83.8 cm x 149 cm
|
| Producentgaranti
|
1 års garanti
|
| Designet for
|
P/N: G35T10KF1B2S, G35T10KF1B4S, G35T10KF2B2S, G35T10KF2B4S, G35T10KF3B4S, G35T10KF4B4S, G35T15KF2B2S, G35T15KF2B4S, G35T15KF3B4S, G35T15KF4B4S, G35T20KF2B4S, G35T20KF3B4S, G35T20KF4B4S, G35T30KF3B4S, G35T30KF4B4S
|
Produktdatablad |
|
| Enhedstype |
Transformator - ekstern |
| Indgangspænding |
AC 480 V |
| Nødvendig frekvens |
60 Hz |
| Udgangspænding |
AC 208 V |
| Service & Support |
Begrænset garanti - 1 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
5 - 95% |
| Bredde |
35.6 cm |
| Dybde |
83.8 cm |
| Højde |
149 cm |
| Vægt |
331 kg |
| Bredde ved forsendelse |
72.3 cm |
| Dybde ved forsendelse |
110 cm |
| Højde ved forsendelse |
166 cm |
| Vægt ved forsendelse |
365 kg |
| Designet for |
P/N: G35T10KF1B2S, G35T10KF1B4S, G35T10KF2B2S, G35T10KF2B4S, G35T10KF3B4S, G35T10KF4B4S, G35T15KF2B2S, G35T15KF2B4S, G35T15KF3B4S, G35T15KF4B4S, G35T20KF2B4S, G35T20KF3B4S, G35T20KF4B4S, G35T30KF3B4S, G35T30KF4B4S |
MGE Galaxy 3500 offers centralized 3 phase power protection with the reliability of the MGE product family. It is ideal for commercial and technical facilities as well as industrial applications. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators. The built in network management card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface.
