| Produktbeskrivelse
|

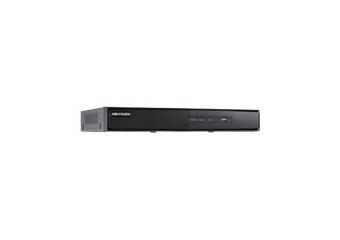

Hikvision DS-7600 Series DS-7616HI-ST/A - standalone DVR - 16 kanaler
|
| Enhedstype
|
Standalone DVR - 16 kanaler - netværket - rackversion - 1U
|
| Understøttede IP Kameraer
|
32
|
| Ramme Rate
|
30 fps (NTSC), 25 fps (PAL)
|
| Komprimerings Format
|
G.711, H.264
|
| TV System
|
NTSC/PAL
|
| Billed Opløsning
|
1600x1200, 1280x720, 1920x1080, 1024x768, 1280x1024
|
| Understøttede HardDrev
|
Antal: 2 - total kapacitet: 8 TB
|
| Dimensioner (B x D x H)
|
44.5 cm x 29 cm x 4.5 cm
|
| Vægt
|
2 kg
|
Produktdatablad |
|
| Enhedstype |
Standalone DVR - rackversion - 1U |
| Video Kanaler |
16 |
| Understøttede IP Kameraer |
32 |
| Audio Kanaler |
4 |
| TV System |
NTSC/PAL |
| Billed Opløsning |
1600x1200, 1280x720, 1920x1080, 1024x768, 1280x1024 |
| Komprimerings Format |
G.711, H.264 |
| Pakke Indhold |
DVR |
| Ramme Rate (Record) |
30 fps (NTSC), 25 fps (PAL) |
| Playback Søgning |
Begivenhed |
| Record Begivenheder |
Alarm, bevægelses detektion, manual |
| Netværket |
Ja |
| Antal Understøttet |
2 |
| Grænseflade |
Serial ATA |
| Understøttet Max Total Kapacitet |
8 TB |
| Netværks Grænseflade |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Understøttede Protokoller |
NTP, SMTP, SNMP, HTTPS, UPnP, IPv6, PPPoE |
| Video Input Porte |
BNC x 16 |
| Video Input Signal Niveau |
1.0Vp-p 75 Ohm |
| Video Output Porte |
HDMI x 1, BNC x 1, VGA x 1 |
| Video Output Signal Niveau |
1.0Vp-p 75 Ohm |
| Audio Input Porte |
RCA x 4 |
| Audio Output Porte |
RCA x 1 |
| Alarm Porte |
Alarm output x 4, alarm input x 16 |
| Kamera Kontrol Grænseflade (PTZ) |
RS-485 |
| Netværk Port |
10/100/1000Base-T |
| Andre Porte |
USB 2.0 x 2 |
| Strøm Forbrug |
10 Watt |
| Bredde |
44.5 cm |
| Dybde |
29 cm |
| Højde |
4.5 cm |
| Vægt |
2 kg |
| Min. driftstemperatur |
-10 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
10 - 90% |
The DS-7600HI series HDVR (hybrid digital video recorder) is a recorder developed by Hikvision independently which can both connect analog and network cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding and decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. The DS-7600HI series HDVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.
