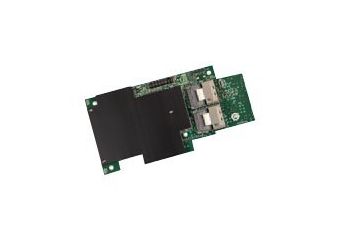

Intel Integrated RAID Module RMS25JB080 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
| Produktbeskrivelse | Intel Integrated RAID Module RMS25JB080 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8 |
| Enhedstype | Styreenhed til lagring (RAID) - indstikskort |
| Bustype | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Dataoverførselshastighed | 6 Gbit/s |
| Understøttede enheder | Harddisk, diskarray (RAID) |
| Antal kanaler | 8 |
| Maks. antal lagerenheder | 128 |
| RAID-niveau | RAID 0, RAID 1, RAID 10, RAID 1E |
| Systemkrav | Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, VMware ESX Server 4.0 |
| Designet for | Server Board DBS2600, S2600; Server System P4208, P4216, P4308, R1208, R1304, R2208, R2208GZ4GC10, R2216, R2224, R2308, R2312; Workstation Board W2600; Workstation System P4304 |
Produktdatablad |
|
| Enhedstype | Styreenhed til lagring (RAID) - indstikskort |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Dataoverførselshastighed | 6 Gbit/s |
| Understøttede enheder | Harddisk, diskarray (RAID) |
| Antal kanaler | 8 |
| Maks. antal lagerenheder | 128 |
| RAID-niveau | RAID 0, RAID 1, RAID 10, RAID 1E |
| Processor | LSI LSISAS2308 800 MHz |
| Interface | 2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (intern) |
| Kompatible åbninger | 1 x mezzanin docking-stikforbindelse |
| Egenskaber | LED indikator, opgradérbart firmware |
| MTBF (forventet tid mellem fejl) | 300,000 timer |
| OS nødvendig | Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, VMware ESX Server 4.0 |
| Fugtighedsgrad ved brug | 20 - 80 % (ikke-kondenserende) |
| Designet for | Intel Server Board DBS2600COEIOC, S2600CO4, S2600COE, S2600GL, S2600GZ, S2600IP4 ¦ Intel Server System P4208IP4LHGC, P4216IP4LHJC, P4308IP4LHGC, P4308IP4LHJC, P4308IP4LHJCL, R1208GL4DS, R1208GZ4GC, R1208GZ4GCIOC, R1208GZ4GCSAS, R1304GZ4GC, R2208GL4GS, R2208GZ4GC, R2208GZ4GC10G, R2208IP4LHPC, R2216GZ4GC, R2216GZ4GCLX, R2216IP4LHPC, R2224GZ4GCSAS, R2224IP4LHPC, R2308GL4GS, R2308GZ4GC, R2308GZ4GCIOC, R2308IP4LHPC, R2312GL4GS, R2312GZ4GCSAS, R2312IP4LHPC ¦ Intel Workstation Board W2600CR2, W2600CR2L ¦ Intel Workstation System P4304CR2LFGN, P4304CR2LFJN |
Intel Integrated RAID Module RMS25JB080 is ideal for servers and workstations needing high-speed data transfer within a small hardware footprint; it delivers a 1 U capable design with high throughput for internal storage applications. Intel Integrated RAID Module RMS25JB080 provides SAS capability that allows compatibility with 6 Gb/s SAS and SATA hard drives and SAS expander devices.
