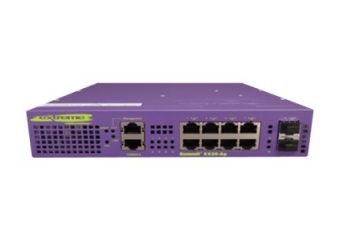

Extreme Networks Summit X430-8p - switch - 8 porte - Administreret - monterbar på stativ
| Produktbeskrivelse | Extreme Networks Summit X430-8p - switch - 8 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 8 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Præstation | Omkoblingskapacitet: 20 Gbps ¦ Fremsendelsespræstation: 14,8 Mpps |
| Kapacitet | Virtuelle grænseflader (VLANs): 4094 ¦ Lag 2 multicast-grupper: 1000 ¦ Belastnings-delende grupper: 128 ¦ ACL-bidrag: 1024 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2 |
| Egenskaber | Understøttet af BOOTP, understøttet af ARP, VLAN-understøttet, IGMP snooping, traffic-shaping, DiffServ understøttet, IPv6 understøttet, SNTP-understøttet, Automatic Protection Switching (APS), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, LLDP support, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP) |
| Overensstemmelsesstandarder | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1Qaz |
| Dimensioner (B x D x H) | 22.1 cm x 25.4 cm x 4.4 cm |
| Vægt | 2.27 kg |
| Producentgaranti | Begrænset livtidsgaranti |
Produktdatablad |
|
| Enhedstype | Switch - 8 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Præstation | Omkoblingskapacitet: 20 Gbps ¦ Fremsendelsespræstation: 14,8 Mpps |
| Kapacitet | Virtuelle grænseflader (VLANs): 4094 ¦ Lag 2 multicast-grupper: 1000 ¦ Belastnings-delende grupper: 128 ¦ ACL-bidrag: 1024 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2 |
| Krypterings algoritme | AES, SSL, TLS |
| Autentificeringsmetode | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Egenskaber | Understøttet af BOOTP, understøttet af ARP, VLAN-understøttet, IGMP snooping, traffic-shaping, DiffServ understøttet, IPv6 understøttet, SNTP-understøttet, Automatic Protection Switching (APS), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, LLDP support, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP) |
| Overensstemmelsesstandarder | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1Qaz |
| Processor | 1: 500 MHz |
| RAM | 256 MB |
| Flashhukommelse | 256 MB |
| Statusindikatorer | Portstatus, strøm, system, blæser |
| Interface | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x SFP ¦ 1 x administration RJ-45 ¦ 1 x seriel (konsol) RJ-45 administration |
| Strømenhed | Intern strømforsyning |
| Strømforbrug ved drift | 30 Watt |
| Overensstemmelsesstandarder | CISPR 22 Klasse A, GOST, CISPR 24, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Klasse A ITE, EN 61000-3-3, EN55024, EN55022 Klasse A, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Klasse A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FCC CFR47 Part 15, FCC CFR21 Part 1040, EN 61000-4-8, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, EN 61000-6-4, KCC, WEEE, EN 60825-1, ETS 300 753, CDRH, EN 50121-4, EN 300 386 |
| Med software | ExtremeWare XOS L2 Edge license |
| Bredde | 22.1 cm |
| Dybde | 25.4 cm |
| Højde | 4.4 cm |
| Vægt | 2.27 kg |
| Service & Support | Begrænset garanti - livstid |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 45 °C |
| Fugtighedsgrad ved brug | 10 - 93 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 70 °C |
| Lagerfugtighedsgrad | 10 - 95% |
The Extreme Networks Summit X430 series Gigabit Ethernet standalone switches provide network edge connectivity for enterprises, branch offices, and small and medium-sized businesses. Summit X430 series are available in 28- or 52-port 10/100/1000 Mbps port models and are ideal for network convergence of Unified Communications, wireless mobility, streaming media and multicast traffic on a single open fabric edge network.
The Summit X430 leverages a compact 1RU and 10-inch deep form factor, along with a low volume operating mode that makes it ideal for open office and wiring closet environments. Summit X430 series switches support up to 4 fixed front panel 100/1000BASE-X (SFP) unpopulated ports that can be utilized for high-speed backbone or link aggregation connections between wiring closets.
Summit X430 series simplifies network operation by using the ExtremeXOS, a modular operating system (OS) that spans all Extreme Networks Summit and BlackDiamond Ethernet switches. Powered by ExtremeXOS, the Summit X430 series enables organizations to build highly resilient and secure edge networks that support high network uptime, simplified management, increased operational efficiency with low total cost of ownership.
The Summit X430 provides exceptional Policy-based QoS with advanced traffic management for converged applications. With eight hardware queues per port to support granular (8kbps-1Mbps) traffic classification, the Summit X430 provides flexible yet reliable solution for converged data, voice & video traffic.
