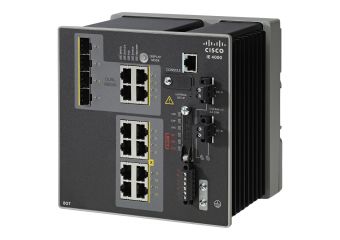

Cisco Industrial Ethernet 4000 Series

Cisco Industrial Ethernet 4000 Series switch - 12 porte - Administreret

Producent Cisco
Produkt nr. IE-4000-8GT4G-E
Varenummer 828412
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 31-08-2017
Mere info
28.310,- DKK
Produktbeskrivelse Cisco Industrial Ethernet 4000 Series - switch - 12 porte - Administreret
Enhedstype Switch - 12 porte - Administreret
Undertype Gigabit Ethernet
Porte 8 x 10/100/1000 + 4 x combo Gigabit SFP
Kapacitet Virtuelle grænseflader (VLANs): 1000 ¦ IGMP-grupper: 1000
MAC adresse table størrelse 16K indtastningshukommelse
Routingprotokol Statisk IPv4 routing
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI
Egenskaber NAT-understøtning, understøttet af BOOTP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, DiffServ understøttet, MAC-adresse-filtrering, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP videresendelse, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP tidssynkronisering, Class of Service (CoS), Precision Time Protocol (PTP), IGMP-filtrering, PROFINET v2, IP-kildebekyttelse, Flex Link-support, Resilient Ethernet Protocol (REP), SmartPort-teknologi, Parallel Redundancy Protocol (PRP)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 1613
Effekt DC 9.6 - 60 V 3.7 A
Dimensioner (B x D x H) 15.54 cm x 12.92 cm x 15.54 cm
Vægt 2.88 kg
Producentgaranti 5 års garanti
Servicepakker 5 års garanti
Enhedstype Switch - 12 porte - Administreret
Pakningstype DIN monterbar på skinne
Undertype Gigabit Ethernet
Porte 8 x 10/100/1000 + 4 x combo Gigabit SFP
Kapacitet Virtuelle grænseflader (VLANs): 1000 ¦ IGMP-grupper: 1000
MAC adresse table størrelse 16K indtastningshukommelse
Routingprotokol Statisk IPv4 routing
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI
Autentificeringsmetode RADIUS, TACACS+
Egenskaber NAT-understøtning, understøttet af BOOTP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, DiffServ understøttet, MAC-adresse-filtrering, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP videresendelse, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP tidssynkronisering, Class of Service (CoS), Precision Time Protocol (PTP), IGMP-filtrering, PROFINET v2, IP-kildebekyttelse, Flex Link-support, Resilient Ethernet Protocol (REP), SmartPort-teknologi, Parallel Redundancy Protocol (PRP)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 1613
RAM 512 MB
Flashhukommelse 128 MB
Interface 8 x 1000Base-T - RJ-45 ¦ 4 x 1000Base-T - RJ-45 - uplink ¦ 4 x - SFP - uplink ¦ 1 x mini-USB - Type B ¦ 1 x konsol - RJ-45
Ekspansionsåbninger 1 (total) / 0 (fri) x SD-hukommelseskort
Nødvendig spænding DC 9.6 - 60 V
Elektrisk strøm påkrævet 3.7 A
Strømforbrug ved drift 35 Watt
Udstyr inkluderet 1 GB SD card
MTBF (forventet tid mellem fejl) 591,240 timer
Overensstemmelsesstandarder CISPR 22 Klasse A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Klasse A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Klasse A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223
TAA kompatibel Ja
Med software Cisco IOS LAN Base
Bredde 15.54 cm
Dybde 12.92 cm
Højde 15.54 cm
Vægt 2.88 kg
Service & Support Begrænset garanti - avanceret komponentudskiftning - 5 år - responstid: 10 dage
Min. driftstemperatur -40 °C
Maks. driftstemperatur 75 °C
Fugtighedsgrad ved brug 5 - 95 % (ikke-kondenserende)
Min. lagertemperatur -40 °C
Maks. Opbevaringstemperatur 85 °C

The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
