Produktdatablad |
|
| Produkttype |

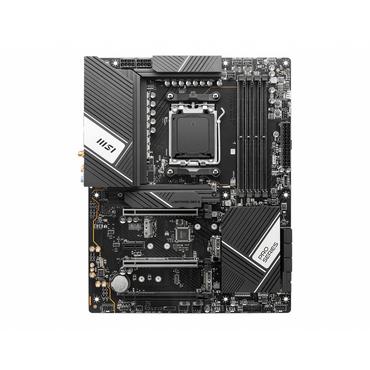

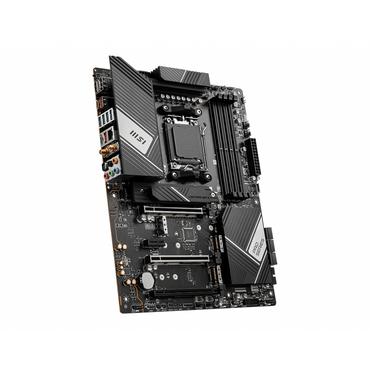

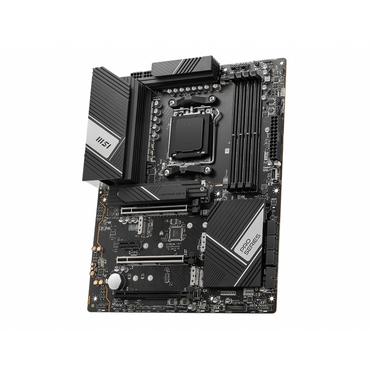

Bundkort - ATX |
| Chipsættype |
AMD X670 |
| Processor-socket |
Socket AM5 |
| Max antal processorer |
1 |
| Kompatible processorer |
Ryzen (understøtter Ryzen 7000 Series) |
| Maks. størrelse |
128 GB |
| Teknologi |
DDR5 |
| Bus Clock |
5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 5200 MHz, 5000 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC4080 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4-modus) ¦ 1 x PCIe 4.0 x16 (x2-modus) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2260/2280 M.2 Key M-åbning) ¦ 1 x M.2 socket (2280/22.110 M.2 Key M-åbning) ¦ 1 x M.2 socket (Key E) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interface |

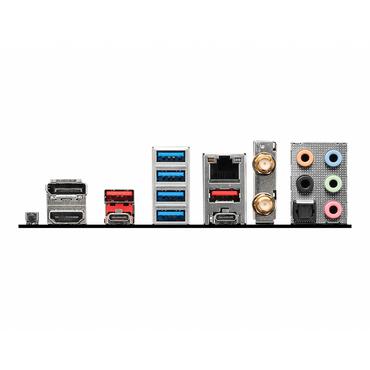

1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x SPDIF-ud ¦ 2 x antenne ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 1 x USB-C 3.2 Gen 2 - intern stik ¦ 4 x USB 3.2 Gen 1 - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-egenskaber |
M-Flash, MSI ClickBIOS 5 |
| Hardware egenskaber |
Digital PWM, 8 Layer PCB, Debug LED, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, MSI Audio Boost 5, Surface Mount Technology (SMT), 14+2+1 Phase Power Design, MSI Memory Boost, 80A Smart Power Stage, Enlarged Chipset Heatsink |
| Udstyr inkluderet |

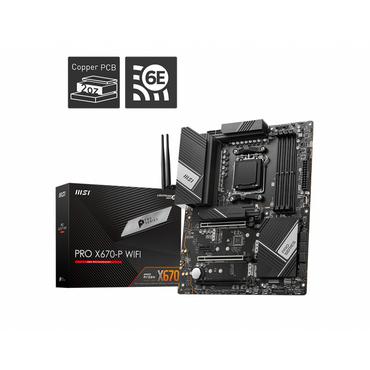

IO-skjold, Wi-Fi-antenne, 3 x M.2 klemmer |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
AIDA64 Extreme (60 dages prøvetid), MSI Center, Norton 360 Deluxe (60 dages prøvetid) |
| Overensstemmelsesstandarder |
WEEE, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4 |
| Bredde |
30.48 cm |
| Dybde |
24.384 cm |
