Produktdatablad |
|
| Produkttype |

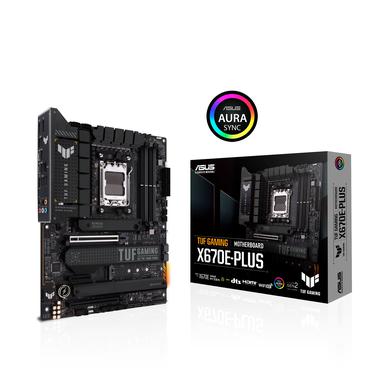

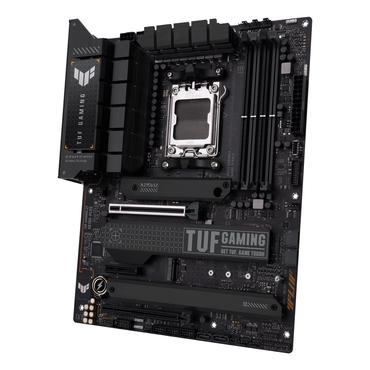

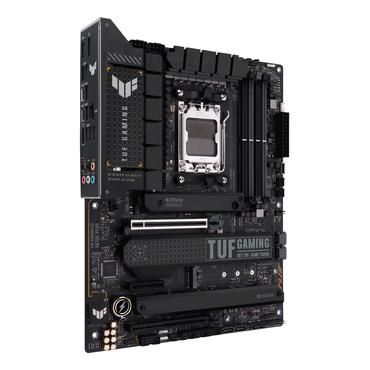

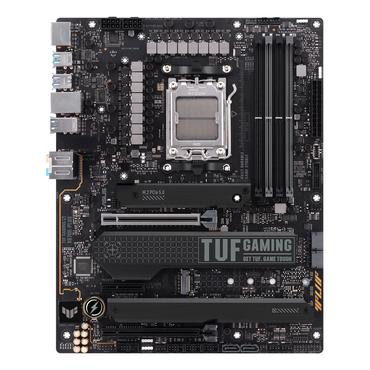

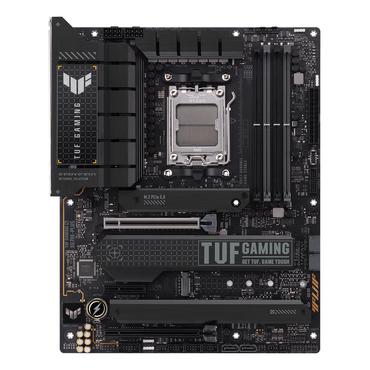

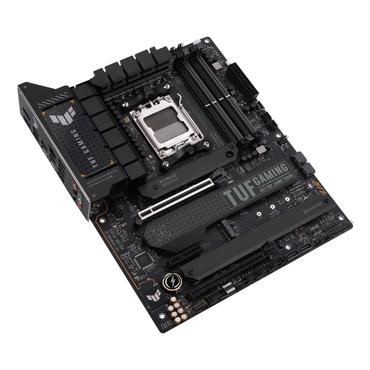

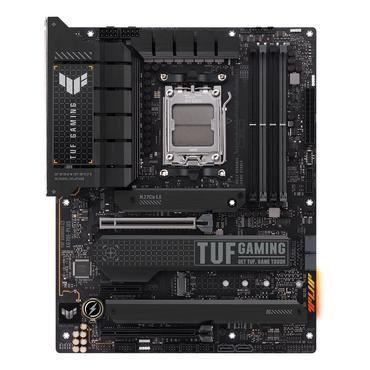

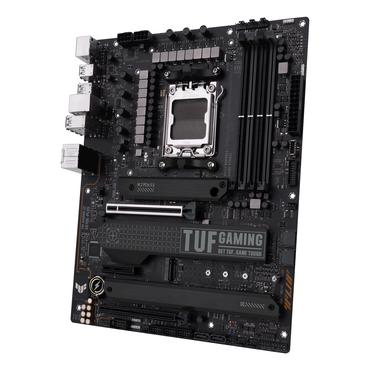

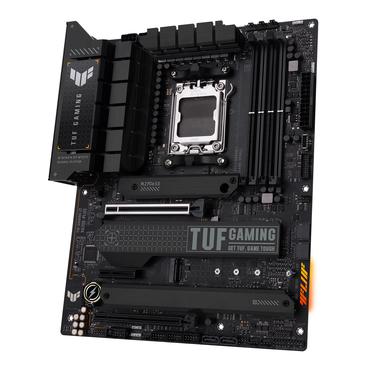

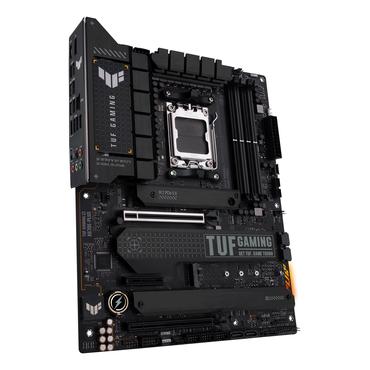

Bundkort - ATX |
| Chipsættype |
AMD X670E |
| Processor-socket |
Socket AM5 |
| Max antal processorer |
1 |
| Kompatible processorer |
Ryzen (understøtter Ryzen 7000 Series) |
| Maks. størrelse |
192 GB |
| Teknologi |
DDR5 |
| Bus Clock |
5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC, ECC, on-die ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALCS1220A |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
2.5 Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4-modus) ¦ 1 x PCIe 4.0 x4 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interface |

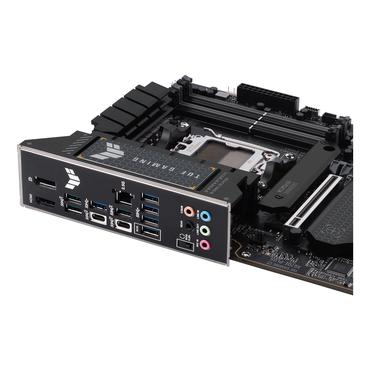

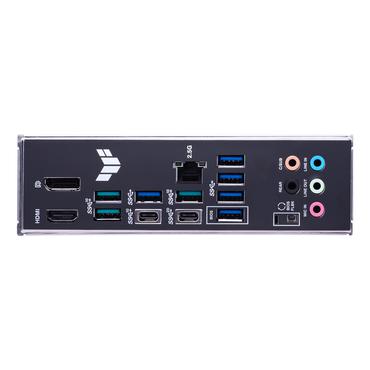

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 5 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack |
| Interne interfaces |
6 x USB 2.0 - intern stik ¦ 1 x USB-C 3.2 Gen 2 - intern stik ¦ 2 x USB 3.2 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik ¦ 1 x Thunderbolt - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
UEFI BIOS, ASUS EZ Flash 3 |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), 8 Layer PCB, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overspændingsbeskyttelse, ASUS SafeSlot, ASUS SafeDIMM, M.2 kølelegeme, Water Pump Header, præmonteret I/O-skjold, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, TUF Gaming Audio Cover, ASUS SafeSlot Core+, FlexKey-knap, ASUS ProCool II, 70A Power Stage, 14+2 Phase Power Design, M.2 Q-Latch, VRM kølelegemedesign, BIOS FlashBack-knap, BIOS FlashBack LED |
| Udstyr inkluderet |

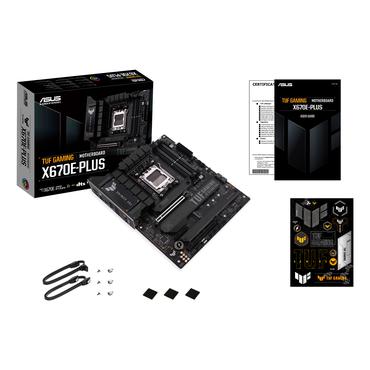

2 x M.2 gummipakke, 2 x M.2 skruepakke, TUF-certificeringskort |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), MyAsus, Armoury Crate, ASUS Fan Xpert 4 |
| Overensstemmelsesstandarder |
VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
