TP-Link JetStream T1700G-28TQ - switch - 24 porte - Administreret - monterbar på stativ
| Produktbeskrivelse | TP-Link JetStream T1700G-28TQ - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - Administreret - kan stables |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 128 Gbps ¦ Fremsendelsespræstation: 95.2 Mpps |
| Kapacitet | IPv4 ruter (statisk): 32 ¦ IPv6 ruter (statisk): 32 ¦ IGMP-grupper: 1000 ¦ VLAN-grupper: 4000 ¦ Prioritetskøer per port: 8 ¦ ACL-bidrag: 300 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SSH-2, CLI |
| Egenskaber | Datatransport, VLAN-understøttet, IGMP snooping, DoS attack beskyttelse, portspejling, Vægtet rundsendelses kø (WRR), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Cable Diagnostics Function, båndbreddekontrol, blæserløs, LLDP support, DHCP videresendelse, IP-MAC binding, SNMP fælde, Neighbor Discovery Protocol (NDP), portisolering, Class of Service (CoS), Loopback, DiffServ Code Point (DSCP) support, 1,5 MB pakkebuffer, systemlog, CPU-beskyttelse, Internet Control Message Protocol (ICMP), dobbelt billedsupport |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 18 cm x 4.4 cm |
| Vægt | 2.8 kg |
| Systemkrav | UNIX, Apple MacOS, Linux, Microsoft Windows Vista / XP / 7 / 8 / 8.1 |
Produktdatablad |
|
| Enhedstype | Switch - 24 porte - Administreret - kan stables |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 128 Gbps ¦ Fremsendelsespræstation: 95.2 Mpps |
| Kapacitet | IPv4 ruter (statisk): 32 ¦ IPv6 ruter (statisk): 32 ¦ IGMP-grupper: 1000 ¦ VLAN-grupper: 4000 ¦ Prioritetskøer per port: 8 ¦ ACL-bidrag: 300 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Max antal enheder i en stak | 6 |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SSH-2, CLI |
| Krypterings algoritme | TLS 1.0, SSL 3.0 |
| Autentificeringsmetode | Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Egenskaber | Datatransport, VLAN-understøttet, IGMP snooping, DoS attack beskyttelse, portspejling, Vægtet rundsendelses kø (WRR), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Cable Diagnostics Function, båndbreddekontrol, blæserløs, LLDP support, DHCP videresendelse, IP-MAC binding, SNMP fælde, Neighbor Discovery Protocol (NDP), portisolering, Class of Service (CoS), Loopback, DiffServ Code Point (DSCP) support, 1,5 MB pakkebuffer, systemlog, CPU-beskyttelse, Internet Control Message Protocol (ICMP), dobbelt billedsupport |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Statusindikatorer | Strøm, system, link/aktivitet |
| Interface | 24 x 1000Base-T RJ-45 ¦ 4 x 10 Gbit LAN SFP+ |
| Strømenhed | Intern strømforsyning |
| Nødvendig spænding | AC 120/230 V (50/60 Hz) |
| Strømforbrug ved drift | 21.8 Watt |
| Udstyr inkluderet | 4 gummifødder |
| Rackmonteringspakke | Inkluderet |
| Overensstemmelsesstandarder | FCC, RoHS |
| Med software | Drivers & Utilities |
| OS nødvendig | UNIX, Apple MacOS, Linux, Microsoft Windows Vista / XP / 7 / 8 / 8.1 |
| Bredde | 44 cm |
| Dybde | 18 cm |
| Højde | 4.4 cm |
| Vægt | 2.8 kg |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 40 °C |
| Fugtighedsgrad ved brug | 10 - 90 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 70 °C |
| Lagerfugtighedsgrad | 5 - 90 % (ikke kondenserende) |

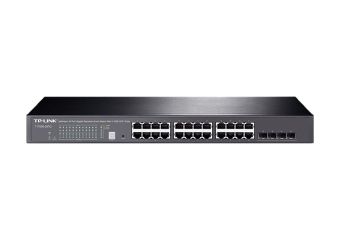

TP-LINK's Gigabit stackable smart switch, the T1700G-28TQ, is designed to help you build a network that is highly accessible, scalable, and robust. The switch is equipped with 24 10/100/100Mbps RJ-45 ports and 4 dedicated 10G SFP+ slots which can be used for uplinks and/or stacking, providing a strong interconnection between access and aggregation. It provides excellent performance, powerful L2 and L2+ features, enterprise-level QoS, and effective security strategies. Besides, with physical stacking improving performance and simplifies management, T1700G-28TQ is able to provide reliable, cost-effective networking solutions for SMBs.
