| Produktbeskrivelse
|

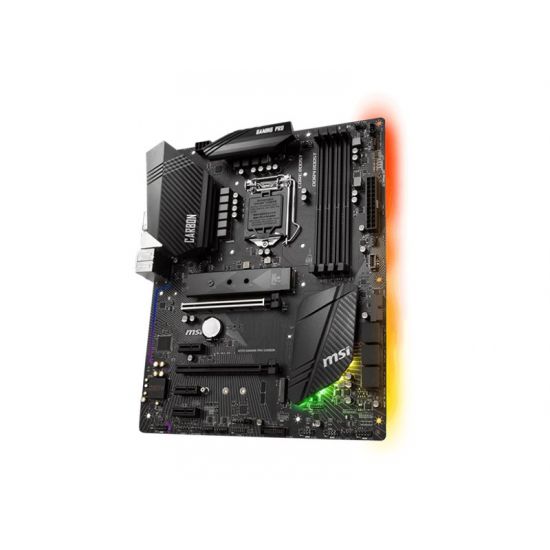

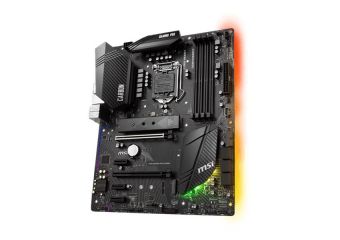

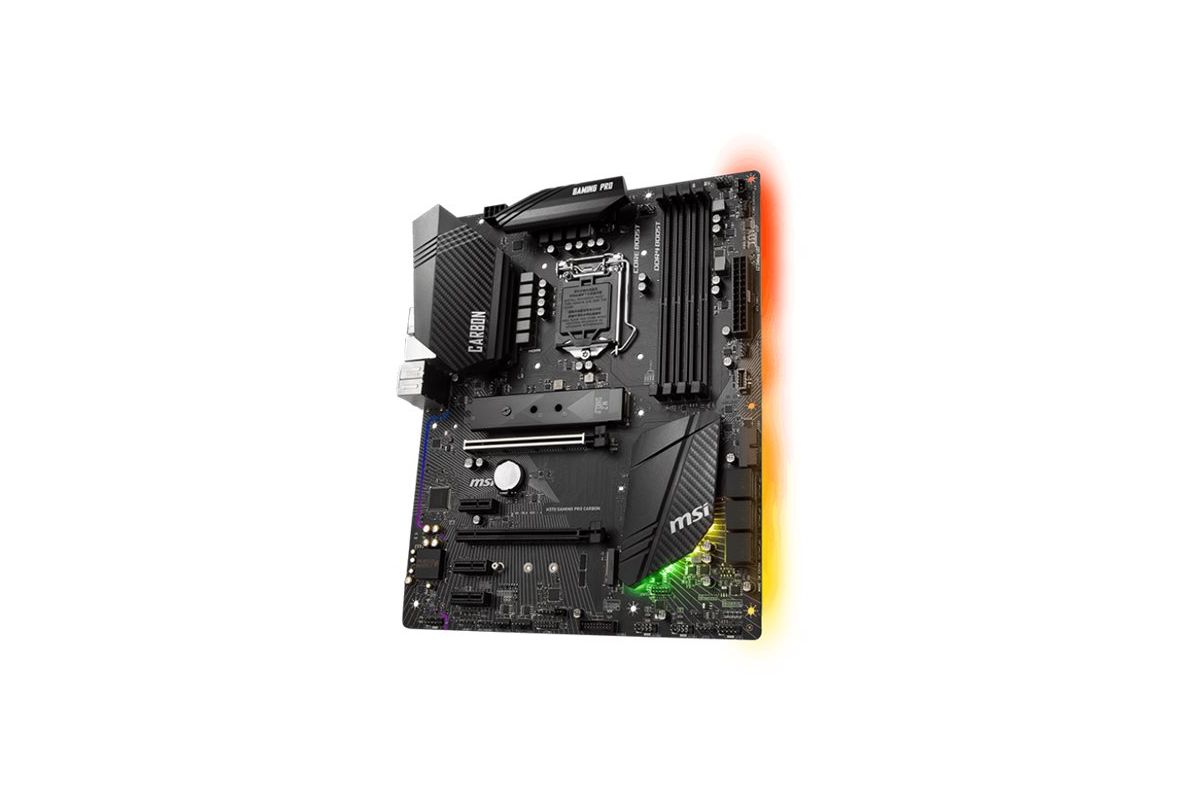

MSI H370 GAMING PRO CARBON - bundkort - ATX - LGA1151 Socket - H370
|
| Produkttype
|
Bundkort - ATX
|
| Chipsættype
|
Intel H370
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Celeron, Core i5, Core i3, Core i7, Pentium Gold (understøtter 8th Generation Intel Core i3/i5/i7/Pentium Gold/Celeron)
|
| Max RAM-størrelse
|
64 GB
|
| RAM understøttet
|
4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
|
| Lagringsporte
|
6 x SATA-600 (RAID), 2 x M.2
|
| USB / FireWire porte
|
1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
Produktdatablad |
|
| Produkttype |
Bundkort - ATX |
| Chipsættype |
Intel H370 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Celeron, Core i5, Core i3, Core i7, Pentium Gold (understøtter 8th Generation Intel Core i3/i5/i7/Pentium Gold/Celeron) |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC1220 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (x16/x4 modus) ¦ 3 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 ¦ PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |
4 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x PS/2-tastatur/mus ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x TOSLINK ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x USB-C Gen2 - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber |
MSI ClickBIOS 5 |
| Hardware egenskaber |
AMD CrossFireX-teknologisupport, MSI Gaming Device Port, Debug LED, MSI Mystic Light, MSI Steel Armor, LAN Protect, Intel Optane Memory Ready, MSI Audio Boost 4, 11 Phase Power Design, Nahimic 3 Sound Technology |
| Udstyr inkluderet |
I/O- bagvæg |
| Medfølgende ledninger |
Seriel ATA kabel |
| Med software |
Drivers & Utilities, MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI X-BOOST |
| Bredde |
30.4 cm |
| Dybde |
24.3 cm |
Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!
Cooling your PC is essential for reliable performance. They have made sure to include enough fan headers with full control to allow you to cool your system any way you want.
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
