| Produktbeskrivelse
|

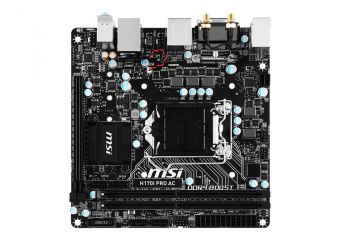

MSI H170I PRO AC - bundkort - mini ITX - LGA1151 Socket - H170
|
| Produkttype
|
Bundkort - mini ITX
|
| Chipsættype
|
Intel H170
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
|
| Max RAM-størrelse
|
32 GB
|
| RAM understøttet
|
2 DIMM slots - DDR4
|
| Lagringsporte
|
4 x SATA-600, 1 x M.2
|
| USB / FireWire porte
|
2 x USB 3.1 Gen 1 + 4 x USB 2.0 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
|
Produktdatablad |
|
| Produkttype |
Bundkort - mini ITX |
| Chipsættype |
Intel H170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Maks. størrelse |
32 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 4 x 7pin SATA, 1 x M.2 |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 2 x USB 3.1 Gen 1 |
| Interne interfaces |
2 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-egenskaber |
UEFI BIOS, MSI ClickBIOS 5 |
| Hardware egenskaber |
Intel Extreme Hukommelses Profil (XMP) support, Intel Small Business Advantage support, MSI Military Class IV, 4K Ultra HD-klar, MSI Audio Boost, MSI Guard-Pro, Debug LED, Double ESD Protection, MSI VGA Armor, overspændingsbeskyttelse |
| Udstyr inkluderet |
2 antenner |
| Med software |
MSI M-Cloud |
| Overensstemmelsesstandarder |
WHQL |
| Bredde |
17 cm |
| Dybde |
17 cm |
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
