| Produktbeskrivelse
|

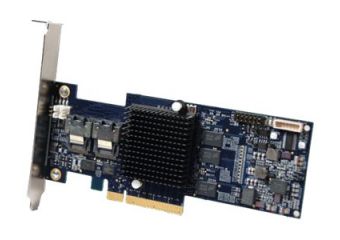

Lenovo ServeRAID B5015 SSD Controller - styreenhed til lagring (RAID) - SATA 3Gb/s / SAS 6Gb/s - PCIe 2.0 x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
| Bustype
|
PCIe 2.0 x8
|
| Interface
|
SATA 3Gb/s / SAS 6Gb/s
|
| Dataoverførselshastighed
|
6 Gbit/s
|
| Understøttede enheder
|
Diskarray (RAID)
|
| Maks. antal lagerenheder
|
8
|
| RAID-niveau
|
RAID 1, RAID 5
|
| Dimensioner (B x D x H)
|
1.3 cm x 16.8 cm x 6.5 cm
|
| Producentgaranti
|
1 års garanti
|
| Designet for
|
System x3550 M2 7946; x3550 M3 7944; x3650 M2 7947; x3650 M3 7945; x3850 X5 7145; x3950 X5
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus |
PCIe 2.0 x8 |
| Interface |
SATA 3Gb/s / SAS 6Gb/s |
| Dataoverførselshastighed |
6 Gbit/s |
| Understøttede enheder |
Diskarray (RAID) |
| Maks. antal lagerenheder |
8 |
| RAID-niveau |
RAID 1, RAID 5 |
| Interface |
2 x SATA 3Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (intern) |
| Kompatible åbninger |
1 x PCI Express 2.0 x8 - half-length, full-height |
| Udstyr inkluderet |
Simpelt beslag |
| Service & Support |
Begrænset garanti - 1 år |
| Bredde |
1.3 cm |
| Dybde |
16.8 cm |
| Højde |
6.5 cm |
| Min. driftstemperatur |
5 °C |
| Maks. driftstemperatur |
53 °C |
| Fugtighedsgrad ved brug |
8 - 90% |
| Designet for |
Lenovo System x3550 M2 7946 ¦ Lenovo System x3550 M3 7944 ¦ Lenovo System x3650 M2 7947 ¦ Lenovo System x3650 M3 7945 ¦ Lenovo System x3850 X5 7145 ¦ Lenovo System x3950 X5 |
Today's business-critical servers require more protection, performance, and manageability than ever. An enterprise-grade RAID solution needs to provide a great level of data protection, high performance, and easy-to-use management tools. The ServeRAID B5015 SSD Controller combines the PM8013 maxSAS RAID-on-Chip (RoC) controller and the RAID stack from PMC-Sierra to accommodate the rigorous server environments and to support high-performing SSDs.
