| Produktbeskrivelse
|

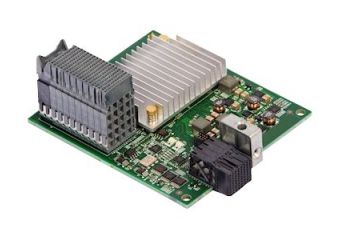

Lenovo Flex System FC5022 - netværksadapter - 16Gb Fibre Channel x 2
|
| Enhedstype
|
Netværksadapter
|
| Model
|
Indstikskort
|
| Porte
|
16Gb Fibre Channel x 2
|
| Dimensioner (B x D x H)
|
10 cm x 8 cm
|
| Vægt
|
13 g
|
| Dataforbindelsesprotokol
|
4Gb Fibre Channel, 8 Gb Fibre Channel, 16Gb Fibre Channel
|
| Dataoverførselshastighed
|
16 Gbps
|
| Systemkrav
|
Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Microsoft Windows HPC Server 2008, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition
|
| Designet for
|
Flex System x220 Compute Node; x240 Compute Node; x240 M5
|
Produktdatablad |
|
| Enhedstype |
Netværksadapter |
| Model |
Indstikskort |
| Porte |
16Gb Fibre Channel x 2 |
| Dataforbindelsesprotokol |
4Gb Fibre Channel, 8 Gb Fibre Channel, 16Gb Fibre Channel |
| Dataoverførselshastighed |
16 Gbps |
| Egenskaber |
Auto-negotiation, Quality of Service (QoS), Transparent (N_Port ID Virtualization - NPIV) modussupport |
| Interface |
2 x 16Gb Fibre Channel |
| Overensstemmelsesstandarder |
CISPR 22 Klasse A, GOST, BSMI CNS 13438 Class A, VCCI Klasse A ITE, ICES-003 Klasse A, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, RoHS, FCC Part 15 A, FCC CFR47 Part 15 B, GOST-R, AS/NZS, ANSI C63.4-2003, EN 60950-1 Second Edition, IEC 60950-1 Second Edition |
| OS nødvendig |
Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Microsoft Windows HPC Server 2008, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition |
| Bredde |
10 cm |
| Dybde |
8 cm |
| Vægt |
13 g |
| Designet for |
Lenovo Flex System x220 Compute Node ¦ Lenovo Flex System x240 Compute Node ¦ Lenovo Flex System x240 M5 |
The network architecture on the IBM Flex System platform has been specifically designed to address network challenges, giving you a very scalable way to integrate, optimize and automate your data center. The IBM Flex System FC5022 2-port 16 GB FC adapter enables high-speed access for compute nodes to an external storage area network (SAN). This adapter is based on Brocade architecture, and offers end-to-end 16 GB connectivity to SAN. It has enhanced features like N Port trunking and N Port ID Virtualization (NPIV) as well as boot-from-the-SAN with automatic LUN discovery and end-to-end Server Application Optimization (SAO).
