Produktdatablad |
|
| Enhedstype |

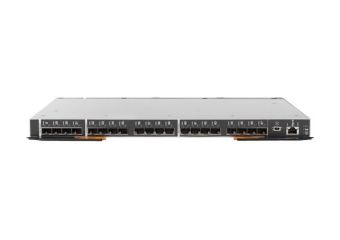

Switch - 48 porte - Administreret |
| Pakningstype |
Plug-in modul |
| Undertype |
Fibre Channel |
| Porte |
20 x 16Gb Fibre Channel SFP+ + 28 x 16Gb Fibre Channel + 2 x 10/100/1000 + 1 x 10/100 |
| Præstation |
Båndbredde: 768 Gbps ¦ Port-til-port latens: 0.7 ms ¦ Omkoblingskapacitet: 420 millioner billedskift pr. sekund |
| Kapacitet |
Virtuelle kanaler pr. port: 48 |
| Fiberkanal |
FC-AL-2, FC-DA, FC-PI, FC-SB-3, FC-Tape, FC-VI, FC-BB-2, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FC-LS, FC-MI-2, FC-PI-4, FC-IFR, FC-PI-5 |
| Protokol til fjernadministration |
SNMP 1, SNMP, SNMP 3, SSH |
| Krypterings algoritme |
SSL |
| Egenskaber |
ISL support, portspejling, IPv6 understøttet, Quality of Service (QoS), temperaturføler, IPv4 support, Management Information Base (MIB) |
| Statusindikatorer |
Portstatus, fejl, status |
| Interface |
28 x 16Gb Fibre Channel ¦ 2 x Ethernet 1000 - 4 pin I2C administration ¦ 20 x 16Gb Fibre Channel - SFP+ ¦ 1 x 100Base-TX - RJ-45 administration ¦ Seriel: 1 x RS-232 - mini-USB type A administration |
| Overensstemmelsesstandarder |
UL, TUV, VCCI, C-Tick, CISPR 22 Klasse A, IEC950, VDE, CSA 22.2 No. 950, CSA 22.2 No. 60950, CB, EMC, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, KCC, BSMI CNS 13438, ICES |
| Med software |
Brocade Advanced Zoning, Brocade Fabric OS, Brocade Fabric Watch, Brocade Advanced Performance Monitoring, Brocade Extended Fabrics, Brocade ISL Trunking, Enhanced Group Management, Brocade Adaptive Networking, 100 VMs |
| Bredde |
40.1 cm |
| Dybde |
31.7 cm |
| Højde |
3 cm |
| Vægt |
3.2 kg |
| Service & Support |
Begrænset garanti - ombytning - 1 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
35 °C |
| Fugtighedsgrad ved brug |
20 - 80 % (ikke-kondenserende) |
| Min. lagertemperatur |
5 °C |
| Maks. Opbevaringstemperatur |
45 °C |
| Lagerfugtighedsgrad |
8 - 80 % (ikke-kondenserende) |
