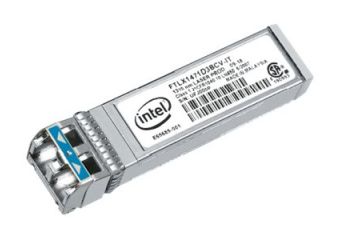

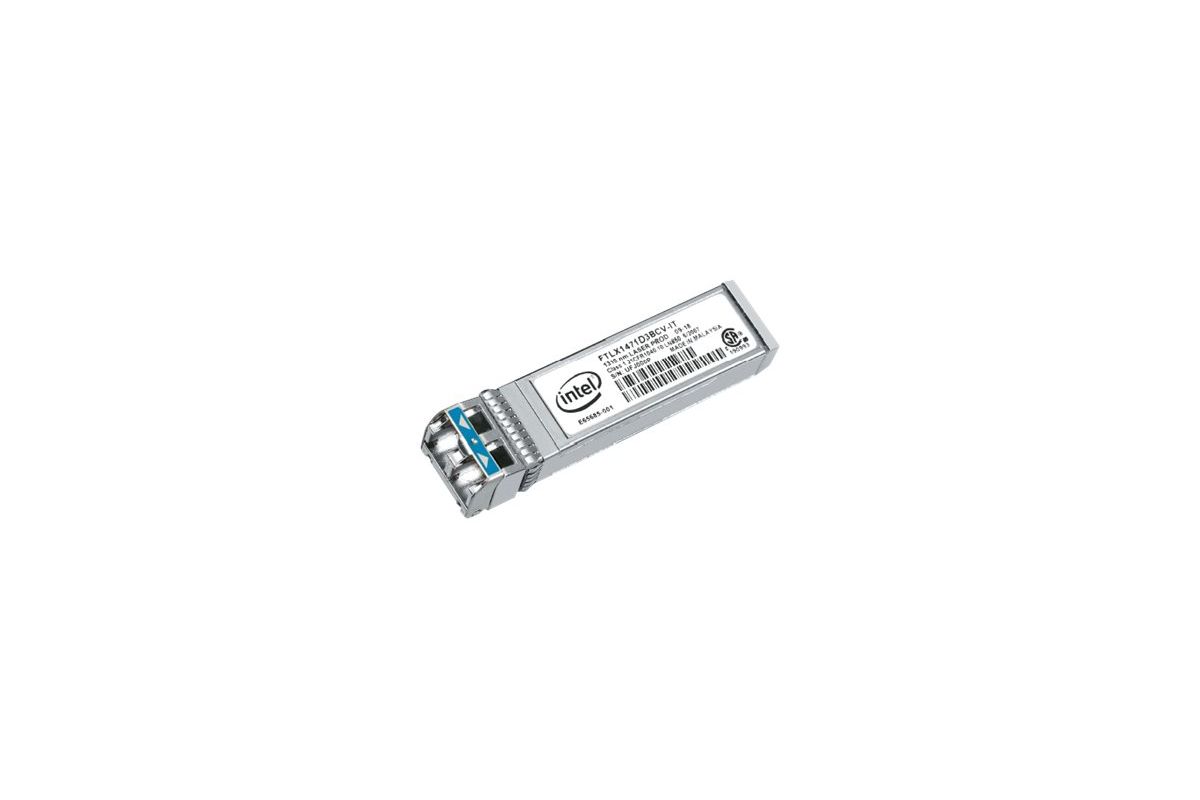

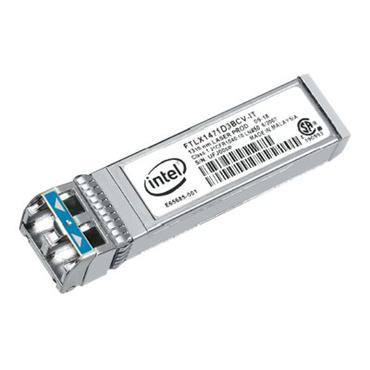

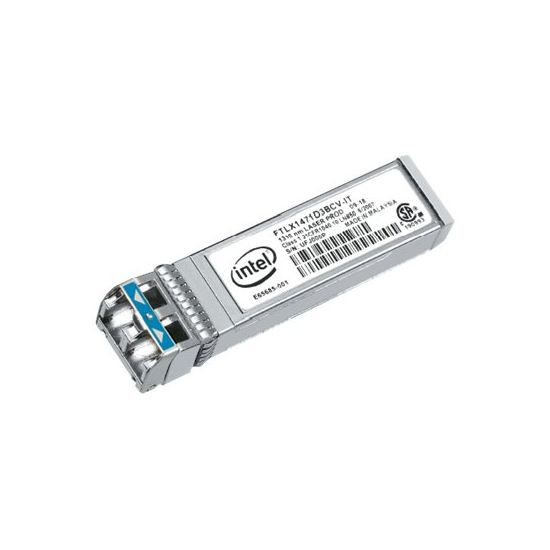

Intel Ethernet SFP+ LR Optics
Intel Ethernet SFP+ LR Optics
3.789,- DKK
| Produktbeskrivelse | Intel Ethernet SFP+ LR Optics - SFP+ transceiver modul - GigE, 10 GigE |
| Enhedstype | SFP+ transceiver modul - LC enkelttilstand |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-LX, 10GBase-LR |
| Dataoverførselshastighed | 10 Gbps |
| Optisk bølgelængde | 1310 nm |
| Dataforbindelsesprotokol | GigE, 10 GigE |
| Maks. overføringsafstand | 10 km |
| Designet for | Ethernet Converged Network Adapter X520-DA2, X520-SR1, X520-SR2, X710-DA4; Ethernet Server Adapter X520-DA1, X520-DA2, X520-SR2 |
| Enhedstype | SFP+ transceiver modul |
| Model | Indstiksmodul |
| Forbindelsesteknologi | Kabling |
| Kabeltype | 1000Base-LX, 10GBase-LR |
| Dataforbindelsesprotokol | GigE, 10 GigE |
| Dataoverførselshastighed | 10 Gbps |
| Optisk bølgelængde | 1310 nm |
| Maks. overføringsafstand | 10 km |
| Interface | 1 x Ethernet 10GBase-LR/1000Base-LX - LC single-mode x 2 |
| Kompatible åbninger | 1 x SFP+ |
| Overensstemmelsesstandarder | RoHS |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 70 °C |
| Designet for | Intel Ethernet Converged Network Adapter X520-DA2, X520-SR1, X520-SR2, X710-DA4 ¦ Intel Ethernet Server Adapter X520-DA1, X520-DA2, X520-SR2 |
The Intel Ethernet SFP+ LR (Long Range - Max link distance is 10km) Optic is a SFP+ module designed for the Intel Ethernet Converged Network Adapters (X520 family: product codes: E10G43BTDA, E10G41BFSR, E10G42BFSR, E10G41BFLR). This lead free optic module supports rates selectable 1.25 Gb/s to 10.3 Gb/s bit rates.
