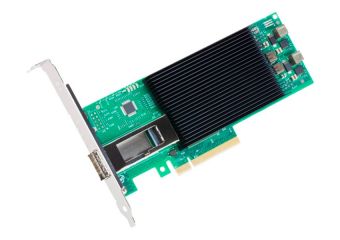

Intel Ethernet Converged Network Adapter X520-QDA1

Intel Ethernet Converged Network Adapter X520-QDA1 netværksadapter

Producent Intel
Produkt nr. X520QDA1
EAN 0735858246217
Varenummer 735188
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 21-08-2017
Mere info
4.637,- DKK
Produktbeskrivelse Intel Ethernet Converged Network Adapter X520-QDA1 - netværksadapter
Enhedstype Netværksadapter
Model Indstikskort - lav profil
Grænseflade (bus) type PCI Express 3.0 x8
Porte 40 Gigabit QSFP+ x 1
Dimensioner (B x D x H) 16.927 cm x 6.866 cm
Dataforbindelsesprotokol FCoE, 40 Gigabit LAN
Dataoverførselshastighed 40 Gbps
Netværks/overføselsprotokol TCP/IP, UDP/IP, iSCSI
Processor 82599ES - Intel
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3x, IEEE 802.1as
Systemkrav Microsoft Windows 7 64-bit Edition, Linux Kernel 2.6, SuSE Linux Enterprise Server 10 SP4, Windows 8 64-bit Edition, Microsoft Windows Server 2008 R2 (64-bit), Red Hat Enterprise Linux 5.9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, VMware ESXi 5.0, Windows 8.1 64-bit Edition, Linux Kernel 3.x, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10
Enhedstype Netværksadapter
Model Indstikskort - lav profil
Grænseflade (bus) type PCI Express 3.0 x8
Porte 40 Gigabit QSFP+ x 1
Forbindelsesteknologi Kabling
Dataforbindelsesprotokol FCoE, 40 Gigabit LAN
Dataoverførselshastighed 40 Gbps
Netværks/overføselsprotokol TCP/IP, UDP/IP, iSCSI
Protokol til fjernadministration SNMP, RMON
Statusindikatorer Ports transmissionshastighed, link/aktivitet
Egenskaber Datatransport, VLAN-understøttet, pakkefiltrering, IPv6 understøttet, Quality of Service (QoS), Jumbo Frames support, Virtual Machine Device Queues (VMDq), IPv4 support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Direct Cache Access (DCA), Extended Message-Signaled Interrupts (MSI-X), Converged Enhanced Ethernet (CEE), iSCSI remote boot, Watch Dog Timer (WDT), Virtualization Technology for Connectivity (VT-c), Data Direct I/O Technology (DDIO)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3x, IEEE 802.1as
Processor 82599ES - Intel
Interface 1 x 40Gb Ethernet / FCoE - QSFP+
Overensstemmelsesstandarder FCC Klasse B-certificeret, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2002/95/EC, MSA SFF-8436
Strømforbrug ved drift 16.7 Watt
OS nødvendig Microsoft Windows 7 64-bit Edition, Linux Kernel 2.6, SuSE Linux Enterprise Server 10 SP4, Windows 8 64-bit Edition, Microsoft Windows Server 2008 R2 (64-bit), Red Hat Enterprise Linux 5.9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, VMware ESXi 5.0, Windows 8.1 64-bit Edition, Linux Kernel 3.x, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10
Dybde 16.927 cm
Højde 6.866 cm
Min. driftstemperatur 0 °C
Maks. driftstemperatur 55 °C

The best-selling Intel X520 dual-port (2x10GbE) adapter is known for its high performance, low latency, reliability, and flexibility. The addition of a new low profile QSFP+ 4x10GbE adapter to the X520 family delivers all of the capabilities in a 4x10GbE adapter. The Intel Ethernet Converged Network Adapter X520-QDA1 adapter delivers a proven, reliable solution for deployments of high density Ethernet for unified 10GbE network connections. The new single-port QSFP+ adapter delivers 4 channels of line-rate 10Gb Ethernet in a single PCIe slot using the latest PCI Express (PCIe) v3.0 bus technology for maximum bandwidth that addresses the increasing capability of the latest Intel Xeon processor E5/E7 based platforms.
