Produktdatablad |
|
| Produkttype |

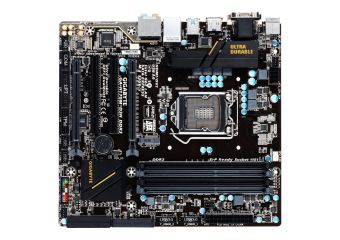

Bundkort - micro-ATX |
| Chipsættype |
Intel H170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
32 GB |
| Teknologi |
DDR3, DDR3L |
| Bus Clock |
1600 MHz, 1333 MHz, 1866 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Maks. allokeret RAM-størrelse |
512 MB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC892 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 240-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCI ¦ 1 x PCIe 3.0 x16 (x4-modus) |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7-pin SATA, 1 x M.2, 2 x SATA Express-port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID-egenskaber |
Intel Smart Response Technology |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 4 x USB 3.0 ¦ 1 x VGA ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 1 x DVI-D |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.0 - intern stik ¦ 1 x audio - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x seriel - intern stik ¦ 1 x parallel - intern stik ¦ 1 x Thunderbolt - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| Hardwareovervågning |
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning |
| Hardware egenskaber |
Q-Flash, AutoGreen, Ultra Durable, AMD CrossFireX-teknologisupport, Intel Small Business Advantage support, Easy RAID Installer, Audio Noise Guard med Path Lighting, Clear CMOS Button, GIGABYTE Smart Switch |
| Udstyr inkluderet |
I/O- bagvæg |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup |
| Overensstemmelsesstandarder |
Plug and Play |
| Bredde |
24.4 cm |
| Dybde |
22.5 cm |
