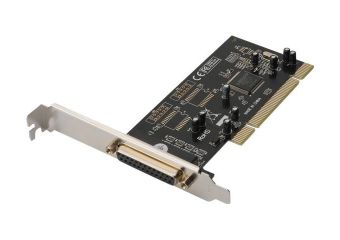

DIGITUS DS-33040-1 - parallel/seriel adapter - 2 porte
Produktbeskrivelse | DIGITUS DS-33040-1 - parallel/seriel adapter - PCI - 2 porte |
Enhedstype | Parallel/seriel adapter |
Model | Indstikskort - lavprofil |
Grænseflade (bus) type | PCI |
PCI-specifikationsrevision | PCI 2.3 |
Antal porte | 2 porte |
Ekstra ports | 1 x parallel port |
Dataforbindelsesprotokol | RS-232 |
Processor | 1 x MosChip Semiconductor MCS9865 |
Systemkrav | Microsoft Windows Vista / XP / 7 |
Produktdatablad |
|
Enhedstype | Parallel/seriel adapter - 2 porte |
Model | Indstikskort - lavprofil |
Grænseflade (bus) type | PCI |
PCI-specifikationsrevision | PCI 2.3 |
Forbindelsesteknologi | Kabling |
Dataforbindelsesprotokol | RS-232 |
Ekstra ports | 1 x parallel port |
Processor | 1 x MosChip Semiconductor MCS9865 |
Interface | 2 x RS-232 - 9-pin D-Sub (DB-9) (på beslag) ¦ 1 x IEEE 1284 (EPP/ECP) - 25-pin D-Sub (DB-25) (ekstern) |
Kompatible åbninger | 1 x PCI - low-profile |
Udstyr inkluderet | Simpelt beslag, 1 x beslag med to DB9 tilslutninger |
Overensstemmelsesstandarder | Plug and Play |
Med software | Drivers & Utilities |
OS nødvendig | Microsoft Windows Vista / XP / 7 |
- Compliant with PCI local bus specification
- Supports 2 x UART serial ports
- Easy Plug and Play
- Automatically selects IRQ and I/O address
- Built-in 16C450/550 compatible UART
- Supports Standard Parallel Port (SPP)
- Parallel (EPP) and Enhanced Capability Port (ECP)
- Parallel data transfer rate up to 1.5 Mbps
- Bus PCI 32-bit
