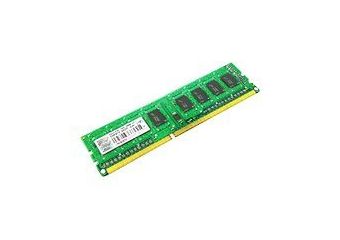

Transcend - 2GB - DDR3 - 1066MHz - DIMM 240-pin - Ikke-ECC - CL7
| Produktbeskrivelse | Transcend - DDR3 - modul - 2 GB - DIMM 240-pin - 1066 MHz / PC3-8500 - ikke bufferet |
| Produkttype | Hukommelsesmodul |
| Kapacitet | 2 GB |
| Hukommelsestype | DDR3 SDRAM - DIMM 240-pin |
| Opgraderingstype | Generisk |
| Dataintegritetskontrol | Ikke-ECC |
| Hastighed | 1066 MHz (PC3-8500) |
| Søgetids Timinger | CL7 |
| Egenskaber | Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), ikke bufferet |
| Spænding | 1.5 V |
| Producentgaranti | Begrænset livtidsgaranti |
| Designet for | ASUS Crosshair V Formula-Z Republic of Gamers, M5A97, Maximus Extreme, Maximus III Formula, Maximus III GENE, MAXIMUS IV EXTREME-Z, Maximus IV Gene-Z, Maximus IV GENE-Z/GEN3, P5G41, P8H61, P8H67, SABERTOOTH 990; Dell Precision T3500; Gigabyte GA-970, G41, H61, Z68; SUPERMICRO X9SCD |
Produktdatablad |
|
| Kapacitet | 2 GB |
| Opgraderingstype | Generisk |
| Type | DRAM hukommelsesmodul |
| Teknologi | DDR3 SDRAM |
| Model | DIMM 240-pin |
| Hastighed | 1066 MHz (PC3-8500) |
| Søgetids Timinger | CL7 |
| Dataintegritetskontrol | Ikke-ECC |
| Egenskaber | Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), ikke bufferet |
| Modulkonfiguration | 256 x 64 |
| Organisering af chips | 128 x 8 |
| Spænding | 1.5 V |
| Overensstemmelsesstandarder | RoHS |
| Service & Support | Begrænset livtidsgaranti |
| Designet for | ASUS Crosshair V Formula-Z Republic of Gamers, M5A97 LE, Maximus Extreme, Maximus III Formula, Maximus III GENE, MAXIMUS IV EXTREME-Z, Maximus IV Gene-Z, Maximus IV GENE-Z/GEN3, P5G41T-M LX V2, P5G41T-M LX3/C/SI, P8H61-M LE/CSM/SI, P8H67-I, P8H67-M PRO/CSM, SABERTOOTH 990FX/C/SI, SABERTOOTH 990FX/GEN3 ¦ Dell Precision T3500 ¦ Gigabyte GA-970A-D3P, GA-970A-UD3P, GA-EP41T-UD3L, GA-EP43T-USB3, GA-EP45C-UD3R, GA-EP45T-USB3P, GA-G41MT-D3, GA-G41MT-D3V, GA-G41MT-ES2H, GA-G41MT-S2, GA-G41MT-S2P, GA-G41MT-USB3, GA-H55N-USB3, GA-H55-USB3, GA-H61M-DS2 DVI, GA-H61M-DS2 HDMI, GA-H61M-DS2H, GA-H61M-DS2V, GA-H61M-S2H, GA-H61M-S2P-B3, GA-H61N-USB3, GA-H67A-UD3H, GA-H67A-UD3H-B3, GA-H67MA-D2H, GA-H67MA-D2H-B3, GA-H67MA-UD2H, GA-H67MA-UD2H-B3, GA-H67MA-USB3-B3, GA-H67M-D2, GA-H67M-D2-B3, GA-H67M-UD2H, GA-H67M-UD2H-B3, GA-H67N-USB3-B3, GA-P43T-ES3G, GA-P45T-ES3G, GA-P55A-UD3, GA-P55A-UD3P, GA-P55A-UD3R, GA-P55A-UD4, GA-P55A-UD4P, GA-P55A-UD5, GA-P55A-UD6, GA-P55A-UD7, GA-P55-UD3, GA-P55-UD3L, GA-P55-UD4P, GA-P55-UD6-C, GA-P55-USB3, GA-P61-USB3-B3, GA-P65A-UD3, GA-P67A-UD3, GA-P67A-UD3-B3, GA-P67A-UD3P, GA-P67A-UD3P-B3, GA-P67A-UD3R, GA-P67A-UD3R-B3, GA-P67A-UD4, GA-P67A-UD4-B3, GA-P67A-UD5, GA-P67A-UD5-B3, GA-P67A-UD7, GA-P67A-UD7-B3, GA-P67X-UD3R-B3, GA-PA65-UD3-B3, GA-PH67A-UD3, GA-PH67A-UD3-B3, GA-PH67-UD3, GA-PH67-UD3-B3, GA-Q57M-S2H, GA-X58A-UD3R, GA-X58A-UD5, GA-X58A-UD7, GA-X58A-UD9, GA-X58-USB3, GA-Z68A-D3-B3, GA-Z68A-D3H-B3, GA-Z68AP-D3, GA-Z68MA-D2H-B3, GA-Z68MX-UD2H-B3, GA-Z68P-DS3, GA-Z68XP-D3, GA-Z68XP-UD3, GA-Z68XP-UD3-iSSD, GA-Z68XP-UD3P, GA-Z68XP-UD3R, GA-Z68XP-UD4, GA-Z68XP-UD5, GA-Z68X-UD3-B3, GA-Z68X-UD3P-B3, GA-Z68X-UD3R-B3, GA-Z68X-UD4-B3, GA-Z68X-UD5-B3, GA-Z68X-UD7-B3 ¦ Intel Desktop Board DB65AL, DH55PJ, DH55TC, DH61BE, DH61CR, DH61DL, DH61WW, DH67CF, DH67CL, DH67GD, DH67VR, DP43BF, DP43BFL, DP45SG, DP67BA, DP67DE, DQ57TML, DQ67EP, DQ67OW, DQ67SW, DX58OG, DX58SO2, DZ68BC, DZ68DB, DZ68ZV ¦ SUPERMICRO X9SCD-F |
The TS256MLK64V1U is a 256M x 64bits DDR3-1066 Unbuffered DIMM. The TS256MLK64V1U consists of 16pcs 128M x 8bits DDR3 SDRAMs in FBGA packages and a 2048 bits serial EEPROM on a 240-pin printed circuit board. The TS256MLK64V1U is a dual in-line memory module and is intended for mounting into 240-pin edge connector sockets.
Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
