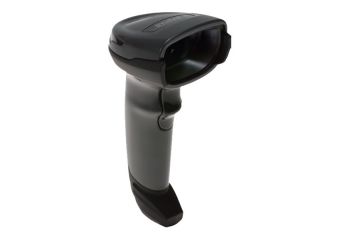

Symbol DS4308-SR - stregkodescanner
| Produktbeskrivelse | Symbol DS4308-SR - stregkodescanner |
| Type | Stregkodescanner - håndmodel - USB - afkodet |
| Farve | Skumring-sort |
| Min. linjebredde | 4 mil |
| Scanningskomponenttype | 2D imager |
| Forbindelsesteknologi | Kabling |
| Dimensioner (B x D x H) | 6.7 cm x 9.8 cm x 16.5 cm |
| Vægt | 162 g |
| Producentgaranti | 5 års garanti |
Produktdatablad |
|
| Type | Stregkodescanner - håndmodel |
| Farve | Skumring-sort |
| Grænsefladetype | USB |
| Min. linjebredde | 4 mil |
| Scanningskomponenttype | 2D imager |
| Lyskilde bølgelængde | 617 nm |
| Maksimale arbejdsafstand | 41.1 cm |
| Skæv vridning (grader) | 60 |
| Pitch (grader) | 65 |
| Print Contrast Signal (PCS) | 20% |
| Med afkodning | EAN/JAN, Kode 93, Matrix 2 af 5, Kode 39, UCC/EAN-128, ISBT 128, GS1 DataBar, QR-kode, MaxiCode, Aztec-kode, Bookland, Kode 32, Kode 39 Full ASCII, Discrete 2 af 5, MicroPDF417, Coadabar, Code 128, Kode 11, UPC, 2 af 5 interfolieret, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Australske poststandard, Canadiske poststandard, Kinesiske poststandard, Japanske poststandard, Kix (nederlandske) post, Koreanske post, EAN-UCC Composite, ISSN, Code 39 Trioptic, UK Post, Royal Mail, Micro QR kode, China Han Xin Code |
| TTL-afkodning | Afkodet |
| Forbindelsesteknologi | Kabling |
| OK meddelelse | Bipper |
| Egenskaber | PRZM Intelligent Imaging-teknologi |
| Interface | 1 x USB |
| Udstyr inkluderet | Stativ |
| Medfølgende ledninger | 1 x USB-kabel - ekstern |
| Overensstemmelsesstandarder | EN55024, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, UL 60950-1 Second Edition, EN 60601-1-2, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, RoHS 2011/65/EU, IEC 62471:2006, EN 62471:2008 |
| Bredde | 6.7 cm |
| Dybde | 9.8 cm |
| Højde | 16.5 cm |
| Vægt | 162 g |
| Service & Support | Begrænset garanti - 5 år |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 50 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Specifikation ved fald | 1,8 m fald på beton |
The DS4308 is a feature-rich 2D imager that resets the bar for scanning performance, scanning range, versatility and ease- of-use. Workers can capture virtually any bar code faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. Its small and lightweight design offers the ergonomics your workers need for all day comfort in the most scan intensive jobs. The Standard Range (SR) model offers an extraordinary range, eliminating the need to purchase separate standard and extended range scanners.
