| Produktbeskrivelse
|

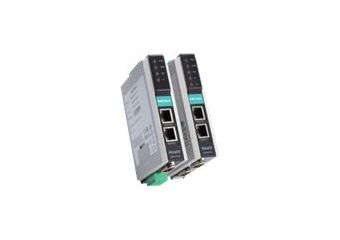

Moxa MGate EIP3170 - gateway
|
| Enhedstype
|
Gateway
|
| Formfaktor
|
Ekstern
|
| Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, RS-232, RS-422
|
| OS nødvendig
|
Microsoft Windows 2000, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Microsoft Windows XP / Vista / 7 / 8 (32/64 bits)
|
| Effekt
|
DC 12 - 48 V
|
| Dimensioner (B x D x H)
|
2.9 cm x 8.92 cm x 11.85 cm
|
| Vægt
|
360 g
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Gateway |
| Bredde |
2.9 cm |
| Dybde |
8.92 cm |
| Højde |
11.85 cm |
| Vægt |
360 g |
| Model |
Ekstern |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, RS-232, RS-422 |
| Egenskaber |
Auto-uplink (auto MDI/MDI-X), 15KV ESD Protector |
| Interface |
1 x 100Base-TX - RJ-45 ¦ 1 x strømmende - RJ-45 ¦ 1 x RS-232 - DB-9 ¦ 1 x RS-422 - terminalblok (skrue) |
| MTBF (forventet tid mellem fejl) |
210,794 timer |
| Overensstemmelsesstandarder |
cUL, EN55024, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, IECEx, UL Class I Division 2, IP30, EN 55022 Class A, ATEX Zone 2 |
| Nødvendig spænding |
DC 12 - 48 V |
| Med software |
Drivers & Utilities |
| OS nødvendig |
Microsoft Windows 2000, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Microsoft Windows XP / Vista / 7 / 8 (32/64 bits) |
| Service & Support |
Begrænset garanti - 5 år |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
75 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
MGate EIP3000 gateways provide EtherNet/IP to DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With a number of innovative functions, the MGate series overcomes the difficulties of connecting between legacy serial devices and SCADA software.
