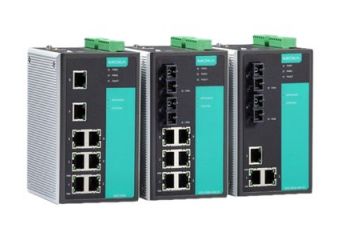

Moxa EtherDevice Switch EDS-505A-T - switch - 5 porte - Administreret
Produktbeskrivelse | Moxa EtherDevice Switch EDS-505A-T - switch - 5 porte - Administreret |
Enhedstype | Switch - 5 porte - Administreret |
Undertype | Fast Ethernet |
Porte | 5 x 10/100 |
MAC adresse table størrelse | 8K indtastningshukommelse |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS |
Egenskaber | Datatransport, komplet duplex ydeevne, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), Syslog understøttet, DiffServ understøttet, IPv6 understøttet, Turbo Mode, til vægmontering, Quality of Service (QoS) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Effekt | DC 24 V |
Dimensioner (B x D x H) | 8.02 cm x 10.5 cm x 13.5 cm |
Vægt | 1.04 kg |
Producentgaranti | 5 års garanti |
Produktdatablad |
|
Enhedstype | Switch - 5 porte - Administreret |
Pakningstype | DIN monterbar på skinne |
Undertype | Fast Ethernet |
Porte | 5 x 10/100 |
MAC adresse table størrelse | 8K indtastningshukommelse |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS |
Egenskaber | Datatransport, komplet duplex ydeevne, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), Syslog understøttet, DiffServ understøttet, IPv6 understøttet, Turbo Mode, til vægmontering, Quality of Service (QoS) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Statusindikatorer | Ports transmissionshastighed, strøm |
Interface | 5 x 100Base-TX RJ-45 ¦ 1 x seriel (RS-232) RJ-45 administration |
Strømenhed | Intern strømforsyning |
Nødvendig spænding | DC 24 V |
Egenskaber | Redundant Power System (RPS) konnektor |
MTBF (forventet tid mellem fejl) | 352,000 timer |
Overensstemmelsesstandarder | UL, cUL, EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, UL 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
Bredde | 8.02 cm |
Dybde | 10.5 cm |
Højde | 13.5 cm |
Vægt | 1.04 kg |
Service & Support | Begrænset garanti - 5 år |
Min. driftstemperatur | -40 °C |
Maks. driftstemperatur | 75 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
The EDS-505A is standalone 16-port managed Ethernet switches. With their advanced Turbo Ring and Turbo Chain technology and RSTP/STP, the EDS-505A switch increases the reliability and availability of your industrial Ethernet network. Model with an wide operating temperature range of -40 to 75°C is also available, and the switch supports several reliable and intelligent functions, making the EDS-505A switch suitable for any harsh industrial environment.
