Produktbeskrivelse
|

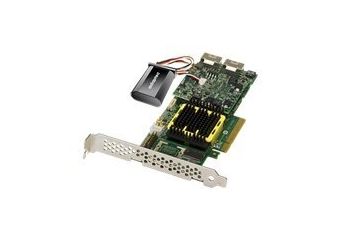

Microchip Adaptec MaxIQ 5805ZQ - styreenhed til lagring (RAID) - SATA 3Gb/s / SAS - PCIe x8
|
Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
Bustype
|
PCIe x8
|
Interface
|
SATA 3Gb/s / SAS
|
Dataoverførselshastighed
|
3 Gbit/s
|
Buffer størrelse
|
512 MB
|
Understøttede enheder
|
Harddisk, diskarray (RAID)
|
Antal kanaler
|
8
|
Maks. antal lagerenheder
|
256
|
RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 1E, RAID 5EE, RAID 60
|
Dimensioner (B x D x H)
|
16.7 cm x 6.4 cm
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
Host Bus |
PCIe x8 |
Interface |
SATA 3Gb/s / SAS |
Dataoverførselshastighed |
3 Gbit/s |
Buffer størrelse |
512 MB |
Understøttede enheder |
Harddisk, diskarray (RAID) |
Antal kanaler |
8 |
Maks. antal lagerenheder |
256 |
RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 1E, RAID 5EE, RAID 60 |
Processor |
1.2 GHz |
Interface |
2 x SATA 3Gb/s / SAS - 36 pin 4i Mini MultiLane (intern) |
Kompatible åbninger |
1 x PCI Express x8 - low-profile |
MTBF (forventet tid mellem fejl) |
873,402 timer |
Overensstemmelsesstandarder |
UL, VCCI, C-Tick, FCC, RoHS |
Med software |
Adaptec Storage Manager, MaxIQ SSD Cache Software |
Service & Support |
Begrænset garanti - 3 år |
Dybde |
16.7 cm |
Højde |
6.4 cm |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
55 °C |
The Adaptec MaxIQ 5805ZQ Storage Controller with SSD caching offers both high I/O transaction and high bandwidth processing when configured with cost-effective, high-capacity SATA drives or high-performance SAS drives. Using SSD/HDD hybrid arrays, the Adaptec 5805ZQ delivers up to 8x faster performance and up to 70% savings in capital and operating costs compared to HDD-only arrays.
