| Produktbeskrivelse
|
Matrox C900 - C-Series - grafikkort - 4 GB
|
| Enhedstype
|
Grafikkort
|
| Bus Type
|
PCI Express 3.0 x16
|
| Hukommelse
|
4 GB GDDR5
|
| Maksimum opløsning
|
1920 x 1200
|
| Maks. antal understøttede monitorer
|
9
|
| Interfacer
|
9 x Mini-HDMI
|
| API-understøttet
|
OpenCL 1.2, OpenGL 4.4, DirectX 12
|
| Dimensioner (B x D x H)
|
22.91 cm x 11.12 cm
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Grafikkort |
| Bus Type |
PCI Express 3.0 x16 |
| Maksimum opløsning |
1920 x 1200 ved 60 Hz |
| Maks. antal understøttede monitorer |
9 |
| Interfacer |
9 x Mini-HDMI |
| API-understøttet |
OpenCL 1.2, OpenGL 4.4, DirectX 12 |
| Egenskaber |
Matrox Clone, Matrox Pivot, Multi-Stream Technology, Board-to-Board Framelock, Stretched Desktop-tilstand, HDCP |
| Størrelse |
4 GB |
| Teknologi |
GDDR5 SDRAM |
| OS nødvendig |
Linux, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bit), Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Embedded Standard 7 64-bit, Microsoft Windows Embedded Standard 7 32-bit, Windows 10 (32/64 bits) |
| Min. RAM-størrelse |
4 GB |
| Yderligere krav |
Internetforbindelse, PCIe slot |
| Med software |
Drivers & Utilities, Matrox PowerDesk |
| Overensstemmelsesstandarder |
RoHS, WEEE |
| Dybde |
22.91 cm |
| Højde |
11.12 cm |
| Service & Support |
Begrænset garanti - 3 år |

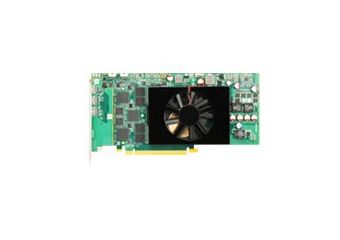

The Matrox C900 is a single-slot, PCI Express x16 graphics card that drives nine, six or three displays or projectors at resolutions up to 1920x1200 per output. A special-purpose card designed to power 3x3 or 9x1 video walls, Matrox C900 runs in stretched desktop mode and delivers a single, ultra-large surface across all attached displays, ideal for digital signage, presentation, and video wall applications. Combine two C900 cards to drive 6x3 or 3x6 video walls from one system, with the board-to-board framelock feature ensuring all displays are synchronized to reduce tearing. Matrox C900, with its high reliability, outstanding performance, and low-power consumption delivers a cost-effective video wall solution for enterprise, industrial, pro A/V, digital signage, security, control rooms, and more.
