| Produktbeskrivelse
|

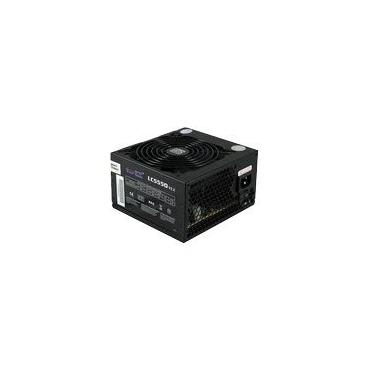

LC Power Silent LC5550 V2.2 - strømforsyning - 550 Watt
|
| Enhedstype
|
Strømforsyning - Power Factor Correction (PFC) - intern
|
| Specifikationsoverensstemmelse
|
ATX12V 2.2
|
| Vægt
|
2.2 kg
|
| Udgangspænding
|
+3.3, +5, +12 V
|
| Strømkapacitet
|
550 Watt
|
| Output Current
|
+3.3V - 22 A ¦ +5V - 21 A ¦ +12V1 - 15 A ¦ +12V2 - 10 A
|
| Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion ¦ 1 x effekt ATX12V 4-pin stik ¦ 1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion ¦ 4 x 15 pin Serial ATA strøm ¦ 4 x 4-PIN intern strøm ¦ 1 x 4-PIN mini-strømforsyningsforbinder
|
| Kølesystem
|
120 mm ventilator
|
| Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.5 cm
|
Produktdatablad |
|
| Enhedstype |
Strømforsyning - Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse |
ATX12V 2.2 |
| PSU formfaktor |
ATX |
| Detaljer om strømudgangskonnektorer |
1 x strøm 24 pin ATX med aftagelig 4 pin sektion ¦ 1 x effekt ATX12V 4-pin stik ¦ 1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion ¦ 4 x 15 pin Serial ATA strøm ¦ 4 x 4-PIN intern strøm ¦ 1 x 4-PIN mini-strømforsyningsforbinder |
| Udgangspænding |
+3.3, +5, +12 V |
| Strømkapacitet |
550 Watt |
| Output Current |
+3.3V - 22 A ¦ +5V - 21 A ¦ +12V1 - 15 A ¦ +12V2 - 10 A |
| Kølesystem |
120 mm ventilator |
| Overensstemmelsesstandarder |
TUV |
| Bredde |
15 cm |
| Dybde |
14 cm |
| Højde |
8.5 cm |
| Vægt |
2.2 kg |
The Silent Series by LC-Power offers a good price-performance ratio: thanks to its high-value 120mm fan, the LC5550 V2.2 lets you experience a stress-free and super-silent work in your office as well as at home. Despite the low sound level, the power supply offers an excellent cooling capacity for your system thanks to its honeycomb styled ventilation grille on its back.
The power supply features all current connectors of the office and mid-range sector. Besides current mainboards you can connect several SATA and PATA hard disk drives respectively optical drives. A floppy disk drive can be added as well as a graphic card with PCI-Express.
The energy saving technology of the board decreases the power consumption in standby mode and increases the efficiency of the power supply up to 80%.
