| Produktbeskrivelse
|

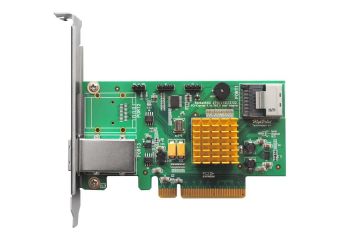

HighPoint RocketRAID 2721 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS - PCIe 2.0 x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
| Bustype
|
PCIe 2.0 x8
|
| Interface
|
SATA 6Gb/s / SAS
|
| Dataoverførselshastighed
|
6 Gbit/s
|
| Understøttede enheder
|
Harddisk, diskarray (RAID)
|
| Antal kanaler
|
8
|
| Maks. antal lagerenheder
|
8
|
| RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD
|
| Systemkrav
|
Linux, Microsoft Windows 2000, FreeBSD, Apple MacOS X 10.5 eller nyere, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
|
| Dimensioner (B x D x H)
|
12 cm x 6.8 cm
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus |
PCIe 2.0 x8 |
| Interface |
SATA 6Gb/s / SAS |
| Dataoverførselshastighed |
6 Gbit/s |
| Understøttede enheder |
Harddisk, diskarray (RAID) |
| Antal kanaler |
8 |
| Maks. antal lagerenheder |
8 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD |
| Processor |
Marvell 88SE9485 |
| Interface |
1 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (intern) ¦ 1 x SATA 6Gb/s / SAS 6Gb/s - 26-pin 4 skærmet Mini MultiLane SAS (SFF-8088) (ekstern) |
| Kompatible åbninger |
1 x PCI Express 2.0 x8 - low-profile |
| Medfølgende ledninger |
1 x Seriel ATA / SAS kabel |
| MTBF (forventet tid mellem fejl) |
920,585 timer |
| Overensstemmelsesstandarder |
FCC Part 15 B, RoHS |
| Med software |
Drivers & Utilities, Command Line Interface (CLI) |
| OS nødvendig |
Linux, Microsoft Windows 2000, FreeBSD, Apple MacOS X 10.5 eller nyere, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits) |
| Dybde |
12 cm |
| Højde |
6.8 cm |
| Min. driftstemperatur |
5 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
5 - 60 % (ikke-kondenserende) |
The RocketRAID 2721 series provides a robust RAID solution that will seamlessly enhance storage performance and increase storage reliability. Administrators can configure SAS and SSD drives for performance application requirements, and SATA drives for low cost high capacity storage needs. Performance hungry applications such as gaming systems, high-definition video editing, production systems and SMB servers will appreciate the performance the RocketRAID 2721 series host adapters deliver.
