Produktbeskrivelse
|

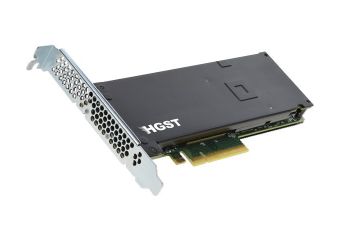

WD FlashMAX II VIR-HW-M2-LP-550-1B - SSD - 550 GB - PCIe 2.0 x8
|
Type
|
Solid state-drev - intern
|
Kapacitet
|
550 GB
|
NAND Flashhukommelses-type
|
Fler-niveaus celle (MLC)
|
Grænseflade
|
PCIe 2.0 x8
|
Dataoverførselshastighed
|
4000 MBps
|
Egenskaber
|
Secure Erase funktion, Error Correction Code (ECC), ende-til-ende datastibeskyttelse, formfaktor i halv højde og halv længde, vFAS adaptiv planlægningsalgoritme
|
Dimensioner (B x D x H)
|
18.39 mm x 167.54 mm x 68.91 mm
|
Vægt
|
141.75 g
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Solid state-drev - intern |
Kapacitet |
550 GB |
NAND Flashhukommelses-type |
Fler-niveaus celle (MLC) |
Grænseflade |
PCIe 2.0 x8 |
Egenskaber |
Secure Erase funktion, Error Correction Code (ECC), ende-til-ende datastibeskyttelse, formfaktor i halv højde og halv længde, vFAS adaptiv planlægningsalgoritme |
Bredde |
18.39 mm |
Dybde |
167.54 mm |
Højde |
68.91 mm |
Vægt |
141.75 g |
Overføringshastighed, drev |
4000 MBps (ekstern) |
Intern datahastighed |
1600 MBps (læs) / 550 MBps (skriv) |
4KB Random Read |
174000 IOPS |
4KB Random Write |
27000 IOPS |
Maximum 4KB Random Write |
109000 IOPS |
Gennemsnitsventetid |
0.02 ms |
Interface |
1 x PCI Express 2.0 x8 |
Strømforbrug |
25 Watt (aktiv) |
Med software |
HGST Device Manager |
OS nødvendig |
openSUSE 11.0, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, CentOS 5.0, Debian Linux 4.0, Red Hat Enterprise Linux 6, Oracle Enterprise Linux 5, Ubuntu 8.x, Ubuntu 9.x, Ubuntu 10.x, Ubuntu 11.x, CentOS 6.0, Debian Linux 5.0, Microsoft Windows Server 2012, Oracle Enterprise Linux 6, openSUSE 12.0, Ubuntu 12.x, VMware ESXi 5.x, Microsoft Windows Server 2008 R2 SP1 (64-bits), Debian Linux 6.0, Red Hat Fedora Core 12 - 18, Microsoft Windows Server 2012 with Hyper-V |
Overensstemmelsesstandarder |
EN55024, EN55022 Klasse A, CSA C22.2, RoHS, UL 60950-1, REACH, ANSI C63.4-2003, IEC 61000 Class A, Directive 2011/65/EU, ICES-003 issue 4 Class A, EMC 2004/108/EC, SVHC, FCC Part 15 B 15.109A, VCCI V-1/2009.04 |
Service & Support |
Begrænset garanti - 3 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
45 °C |
HGST's FlashMAX II devices and associated software deliver performance without compromise, along with HDD-like capacity in a very compact, universal form factor.
FlashMAX II with vFAS delivers consistent performance across all application workloads, even when the device is fully utilized. FlashMAX II with vFAS delivers application performance whether it is peak small block read performance, where a single low profile card can deliver over a million IOPS, or sustained mixed read/write performance when the drive is full.
