Produktbeskrivelse
|

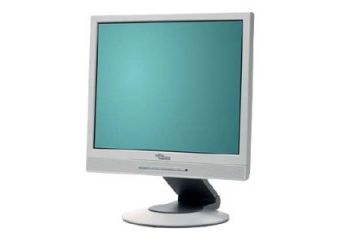

Fujitsu SCENICVIEW B17-2 - LCD-skærm - 17"
|
Enhedstype
|
LCD-skærm - 17"
|
Egenskaber
|
Stereohøjttalere
|
Standard opløsning
|
1280 x 1024
|
Pixel Pitch
|
0.264 mm
|
Lysstyrke
|
300 cd/m²
|
Kontrastforhold
|
500:1
|
Responstid
|
8 ms
|
Input-stik
|
DVI-D, VGA
|
Højttalere
|
Integreret
|
Justeringer til display-position
|
Højde, tilt
|
Spænding
|
AC 120/230 V (50/60 Hz)
|
Dimensioner (B x D x H)
|
37.4 cm x 24.9 cm x 36 cm
|
Vægt
|
5.7 kg
|
Miljømæssige standarder
|
ENERGY STAR kvalificeret
|
Overensstemmelsesstandarder
|
Plug and Play, EN 60950, EN 61000-3-2, GS, ISO 13406-2, VESA FPMPMI, EN 61000-3-3, EN55024, EN55022 Class B
|
Produktdatablad |
|
Skærmtype |
LCD-skærm / TFT aktiv matriks |
Diagonal størrelse (tommer) |
17" |
Diagonal størrelse (centimeter) |
43 cm |
Indbygget udstyr |
Stereohøjttalere |
Standard opløsning |
1280 x 1024 |
Pixel Pitch |
0.264 mm |
Lysstyrke |
300 cd/m² |
Kontrastforhold |
500:1 |
Responstid |
8 ms |
Lodret opdateringshastighed |
76 Hz |
Vandret opdateringshastighed |
82 kHz |
Vandret synsvinkel |
160 |
Lodret synsvinkel |
150 |
Farvetemperatur |
9300K, 6500K |
Styring og justeringer |
Lydløs, enhed, klarhed, kontrast, H/V position, indgangsvalg, farvetemperatur, fase, clock |
Dimensioner (B x D x H) |
37.4 cm x 24.9 cm x 36 cm |
Vægt |
5.7 kg |
Type |
Højtalere - stereo - integreret |
Udgangseffekt/kanal |
2 Watt |
Interface |
1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x lydindgang - mini-telefonstereo 3,5 mm ¦ 1 x DVI-D (digital) - 24+1 pin digital DVI |
Justeringer til display-position |
Højde, tilt |
VESA-monteringsinterface |
100 x 100 mm |
Egenskaber |
Slot sikkerhedslås (kabel lås sælges separat) |
Medfølgende ledninger |
1 x VGA-kabel - 1.8 m ¦ 1 x audiokabel - 1.8 m ¦ 1 x DVI-kabel - 1.8 m |
Baggrundslys, brændetid |
50,000 timer |
MTBF (forventet tid mellem fejl) |
70,000 time(r) |
Overensstemmelsesstandarder |
Plug and Play, EN 60950, EN 61000-3-2, GS, ISO 13406-2, VESA FPMPMI, EN 61000-3-3, EN55024, EN55022 Class B |
Strømforsyning |
Intern |
Indgangspænding |
AC 120/230 V (50/60 Hz) |
Strømforbrug (Typisk) |
30 Watt |
Strømforbrug stand-by/sov |
1 Watt |
ENERGY STAR-certificeret |
Ja |
Min. driftstemperatur |
5 °C |
Maks. driftstemperatur |
35 °C |
With the SCENICVIEW Business Line TFT displays Fujitsu Technology Solutions leads the way to the future by creating convenient and reliable working environments. LCD TFT technology stands for top picture quality, ergonomics and ideal environment compatibility.
The SCENICVIEW B17-2 DVI combines perfect ergonomics and improved usability with an eye catching design for a reasonable price. The height adjustable stand with a wide tilt range ensures comfortable working conditions, especially in an ergonomic low position over the desk. With its integrated speakers and fast response time, the SCENICVIEW B17-2 DVI is the ideal choice for modern PC applications.
