| Produktbeskrivelse
|

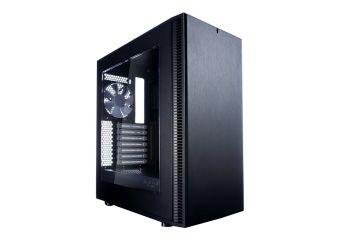

Fractal Design Define C-Window - tower - ATX
|
| Produkttype
|
Systemkabinet
|
| Model
|
Tower
|
| Sidepanel i vindue
|
Ja
|
| Farve
|
Sort
|
| I/O-kontakter
|
2 x USB 3.0 ¦ 1 x hovedtelefoner ¦ 1 x mikrofon
|
| Understøttede motherboards
|
ATX, microATX, ITX
|
| Egenskaber, systemkabinet
|
Udtageligt støvfilter, front støvfilter, ModuVent, modulære HDD-bøjler, kabeladministrations-system, understøtter 120 mm radiator bagtil, sidedæmpende skummåtter til sidepanel, støvfilter i bunden, understøtter 120/140/240/280/360 mm radiator i frontpanel, vandkølingsklar, understøtter 120/240 mm radiator i toppen
|
| Strømenhed
|
Ingen strømforsyning (ATX)
|
| Dimensioner (B x D x H)
|
21 cm x 39.9 cm x 44 cm
|
| Vægt
|
6.8 kg
|
Produktdatablad |
|
| Model |
Tower |
| Sidepanel i vindue |
Ja |
| Max størrelse på bundkort |
ATX |
| Understøttede motherboards |
ATX, microATX, ITX |
| Antal interne bays |
5 |
| Farve |
Sort |
| Kølesystem |
Front: 120 x 120 x 25 mm ventilator x 1 / indtag / 1200 rpm / 52,3 cfm / 19.4 dBA / 3 x 120/140 mm blæser understøttet ¦ Bagside: 120 x 120 x 25 mm ventilator x 1 / udstødning / 1200 rpm / 52,3 cfm / 19.4 dBA ¦ Top: 120/140 mm blæserstativ x 2 ¦ Nederst: 120 mm blæserstativ x 1 |
| Maks. højde for CPU-køler |
168 mm |
| Maks. længde for videokort |
315 mm |
| Egenskaber, systemkabinet |
Udtageligt støvfilter, front støvfilter, ModuVent, modulære HDD-bøjler, kabeladministrations-system, understøtter 120 mm radiator bagtil, sidedæmpende skummåtter til sidepanel, støvfilter i bunden, understøtter 120/140/240/280/360 mm radiator i frontpanel, vandkølingsklar, understøtter 120/240 mm radiator i toppen |
| Udvidelses-båse |
2 (total) / 2 (fri) x intern - 3.5" ¦ 3 (total) / 3 (fri) x intern - 2.5" |
| Ekspansionsåbninger |
7 |
| Interface |
2 x USB 3.0 ¦ 1 x hovedtelefoner - mini-jack ¦ 1 x mikrofon - mini-jack |
| Strømenhed |
Ingen strømforsyning |
| Specifikationsoverensstemmelse |
ATX |
| Maks. antal understøttet |
1 |
| Bredde |
21 cm |
| Dybde |
39.9 cm |
| Højde |
44 cm |
| Vægt |
6.8 kg |
The Define Mini C is an ATX case, that features a highly optimized open-air interior design, offering room for the popular component setups. Dense sound dampening material throughout the case in conjunction with Fractal Design's signature ModuVent technology gives users the possibility for near silent operation or added cooling capacity. The case combines two Dynamic X2 fans with bottom, top and front intakes, protected by easy-to-clean, high airflow removable dust filters. With extra attention to cable management features, such as hidden drive cages and a PSU shroud, the Define C makes it easy to create a stunningly clean build, that's sure to impress.
