Produktbeskrivelse
|

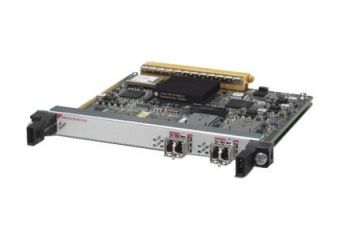

Cisco 2-Port OC-48c/STM-16c POS/RPR Shared Port Adapter - ekspansionsmodul - 2 porte
|
Enhedstype
|
Ekspansionsmodul
|
Model
|
Indstiksmodul
|
Dimensioner (B x D x H)
|
17.2 cm x 18.5 cm x 2 cm
|
Vægt
|
340 g
|
Antal porte
|
2 porte
|
Dataforbindelsesprotokol
|
HDLC, Frame Relay, SONET/SDH, PPP, SRP, RPR
|
Liniefrekvens
|
OC-48c/STM-16c
|
Designet for
|
SPA Interface Processor 800
|
Produktdatablad |
|
Enhedstype |
Ekspansionsmodul - 2 porte |
Model |
Indstiksmodul |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
HDLC, Frame Relay, SONET/SDH, PPP, Spatial Reuse Protocol (SRP), RPR |
Protokol til fjernadministration |
SNMP |
Liniefrekvens |
OC-48c/STM-16c |
Statusindikatorer |
Aktiv, detektering af moduleringsfrekvens, status, alarm |
Ekspansionsåbninger |
2 (total) / 2 (fri) x SFP |
Kompatible åbninger |
1 x Ekspansionsholder |
Overensstemmelsesstandarder |
NEBS niveau 3, VCCI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 3548, FCC CFR47 Part 15 |
Bredde |
17.2 cm |
Dybde |
18.5 cm |
Højde |
2 cm |
Vægt |
340 g |
Min. driftstemperatur |
5 °C |
Maks. driftstemperatur |
40 °C |
Fugtighedsgrad ved brug |
5 - 85% |
Designet for |
Cisco SPA Interface Processor 800 |
The Cisco 2-Port OC-48c/STM-16c POS/RPR SPA offers the benefits of network scalability with lower initial costs and easy upgrades. The SPA continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and leading-edge technology. The SPA allows different interfaces (POS, ATM, etc.) to be deployed on the same carrier card.
