| Produktbeskrivelse
|

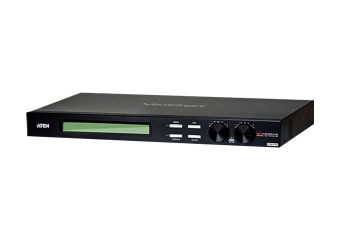

ATEN VanCryst VM1616T 16x16 Cat 5 A/V Matrix Switch - video/audio/seriel kontakt - monterbar på stativ
|
| Enhedstype
|
Video/audio/seriel kontakt
|
| Pakningstype
|
Monterbar på stativ 1U
|
| Undertype
|
VGA / audio / seriel
|
| Protokol til fjernadministration
|
Telnet, HTTP
|
| Egenskaber
|
Håndterbar, firmware kan opgraderes
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Dimensioner (B x D x H)
|
43.24 cm x 27.12 cm x 4.4 cm
|
| Vægt
|
3.63 kg
|
| Systemkrav
|
Red Hat Linux 6.0 eller nyere, FreeBSD, Apple MacOS 9.0 eller nyere, Microsoft Windows 2000 eller nyere, Novell NetWare 5.0 eller nyere, SunSoft Solaris 8 eller nyere, Mandrake Linux 9.0 eller nyere, Microsoft DOS 6.2 eller nyere, SuSE Linux 8.2 eller nyere
|
Produktdatablad |
|
| Enhedstype |
Video/audio/seriel kontakt |
| Pakningstype |
Desktop, monterbar på stativ 1U |
| Undertype |
VGA / audio / seriel |
| Protokol til fjernadministration |
Telnet, HTTP |
| Maksimum opløsning |
1920 x 1200 @ 60 Hz |
| Egenskaber |
Håndterbar, firmware kan opgraderes |
| Indbygget udstyr |
Status-LCD |
| Interface |
32 x VGA / audio / seriel RJ-45 ¦ 1 x seriel (RS-232) administration ¦ 1 x audio-output mini-jack ¦ 1 x audio-output ¦ 1 x VGA output HD-15 ¦ 1 x LAN RJ-45 administration ¦ 2 x seriel (RS-232) DB-9 administration ¦ 1 x seriel administration |
| Strømenhed |
Intern strømforsyning |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Rackmonteringspakke |
Inkluderet |
| Overensstemmelsesstandarder |
DDC-2B, RoHS |
| OS nødvendig |
Red Hat Linux 6.0 eller nyere, FreeBSD, Apple MacOS 9.0 eller nyere, Microsoft Windows 2000 eller nyere, Novell NetWare 5.0 eller nyere, SunSoft Solaris 8 eller nyere, Mandrake Linux 9.0 eller nyere, Microsoft DOS 6.2 eller nyere, SuSE Linux 8.2 eller nyere |
| Bredde |
43.24 cm |
| Dybde |
27.12 cm |
| Højde |
4.4 cm |
| Vægt |
3.63 kg |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
50 °C |
| Fugtighedsgrad ved brug |
0 - 80 % (ikke-kondenserende) |
| Min. lagertemperatur |
-20 °C |
| Maks. Opbevaringstemperatur |
60 °C |
The VM1616T is a Matrix Switch that routes and distributes audio, video, and RS-232 signals over distances of up to 300 m with 1920 x 1200 video resolution. The VM1616T can receive data from up to 16 audio/video sources and transmit data to up to 16+1 audio/video displays. The VM1616T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS-232/RS-485/RS-422 serial port; and remotely, over the Internet with a browser-based web page interface.
The VM1616T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.
