Produktbeskrivelse
|

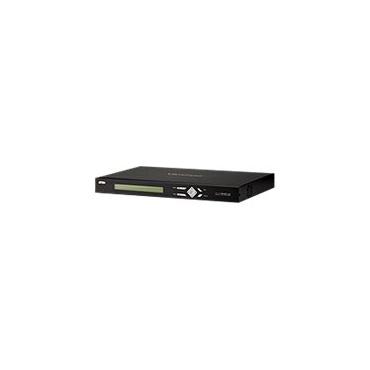

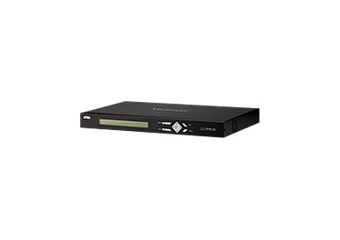

ATEN VanCryst 8x8 VM0808T - video-/audioswitch - monterbar på stativ
|
Enhedstype
|
Video-/audioswitch
|
Pakningstype
|
Monterbar på stativ 1U
|
Protokol til fjernadministration
|
Telnet
|
Effekt
|
AC 120/230 V
|
Dimensioner (B x D x H)
|
25.3 cm x 43.2 cm x 4.4 cm
|
Vægt
|
3.5 kg
|
Produktdatablad |
|
Enhedstype |
Video-/audioswitch |
Pakningstype |
Monterbar på stativ 1U |
Protokol til fjernadministration |
Telnet |
Maksimum opløsning |
1920 x 1200 / 1080p @ 60 Hz |
Egenskaber |
HDTV-understøttet |
Statusindikatorer |
LCD-skærm |
Interface |
1 x administration (RS-232) DB-9 |
Strømenhed |
Ekstern strømforsyning |
Nødvendig spænding |
AC 120/230 V |
Rackmonteringspakke |
Inkluderet |
Bredde |
25.3 cm |
Dybde |
43.2 cm |
Højde |
4.4 cm |
Vægt |
3.5 kg |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
50 °C |
Fugtighedsgrad ved brug |
0 - 80 % (ikke-kondenserende) |
The ATEN VM0808T 8x8 Cat 5 A/V matrix switch is a versatile audio/video over Cat 5 + serial solution that offers an easy and affordable way to route any of 8 audio/video sources to any of 8 displays, in combination with the ATEN VE500 A/V over Cat 5 extender system.
With eight Cat 5 A/V input ports, the VM0808T allows you to connect eight source devices (via eight VE500T transmitters) to eight monitors, displays, or projectors (via eight VE500R / VE500RQ receivers) at the same time. In addition to the eight Cat 5 connections, the unit is also enabled with local audio/video inputs/outputs so that an extra source device and monitor located in the same rack as the VM0808T can function as a further transmitter and receiver.
