Produktbeskrivelse
|

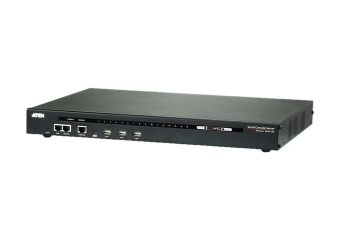

ATEN SN0116A - konsol server
|
Enhedstype
|
Konsol server
|
Formfaktor
|
Ekstern
|
Antal porte
|
16
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
|
Kapacitet
|
Samtidige brugere: 16
|
Udstyr inkluderet
|
4 gummifødder
|
OS nødvendig
|
UNIX, Linux, Microsoft Windows 2000 eller nyere, Microsoft Windows Server 2003, Microsoft Windows Server 2008
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
Dimensioner (B x D x H)
|
43.72 cm x 32.98 cm x 4.4 cm
|
Vægt
|
4.38 kg
|
Produktdatablad |
|
Enhedstype |
Konsol server |
Bredde |
43.72 cm |
Dybde |
32.98 cm |
Højde |
4.4 cm |
Vægt |
4.38 kg |
Model |
Ekstern |
Antal porte |
16 |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
Netværks/overføselsprotokol |
TCP/IP, UDP/IP, NTP, SMTP, DHCP |
Protokol til fjernadministration |
SNMP, Telnet, HTTP, HTTPS, SSH |
Kapacitet |
Samtidige brugere: 16 |
Statusindikatorer |
Strøm, LAN, seriel |
Egenskaber |
Syslog understøttet, MAC-adresse-filtrering, IPv6 understøttet, IP-adresse filtrering, firmware kan opgraderes, modem-emulering, resultat register, SMS alarmer, SNMP fælde, e-mail meddelelse |
Krypterings algoritme |
128-bit SSL, 256-bit SSL |
Autentificeringsmetode |
Kerberos, RADIUS, TACACS+, LDAP, Active Directory |
Interface |
16 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x modem - RJ-45 ¦ 3 x USB - Type A ¦ 1 x mini-USB - Type B ¦ 1 x konsol - RJ-45 ¦ 1 x PON - RJ-45 |
Udstyr inkluderet |
4 gummifødder |
Medfølgende ledninger |
2 x seriel adapter ¦ 1 x USB-kabel |
Overensstemmelsesstandarder |
RoHS, WEEE, FCC Part 15 A |
Strømenhed |
Intern strømforsyning |
Antal installeret |
2 |
Maks. antal understøttet |
2 |
Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
Med software |
Drivers & Utilities |
OS nødvendig |
UNIX, Linux, Microsoft Windows 2000 eller nyere, Microsoft Windows Server 2003, Microsoft Windows Server 2008 |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
50 °C |
Fugtighedsgrad ved brug |
0 - 80 % (ikke-kondenserende) |
The SN serial console server integrates advanced technology with secure enterprise communications. The serial console server offers both in-band and out-of-band remote serial console access to servers and network devices, via a direct Telnet / SSH client or an applet viewer. With its comprehensive features, SN serial console server helps maximize IT productivity, provides scalability and reduces operational costs.
The serial console server is used to connect serial devices to the Ethernet network to meet the needs of demanding applications in industrial control, data acquisition, environment monitoring, and remote facility and equipment management. It offers versatile operation modes. It helps transform the capabilities of legacy serial devices to take advantage of the TCP / IP network to allow remote access, configuration, and management of the serial devices from anywhere in the world over the Internet.
SN is a complete secure remote access and control solution. Access rights and privilege control can be applied to individual ports. Consolidated authentication simplifies password management. Data encryption is provided. Logging and alerting helps speed resolution of issues and mitigates risk. Enhanced security functions ensure the compliance of internal security mandates. The ease of use, accessibility and manageability of the SN serial console server enables a quick response to changing demands and helps meet ultimate business goals.
