Produktbeskrivelse
|

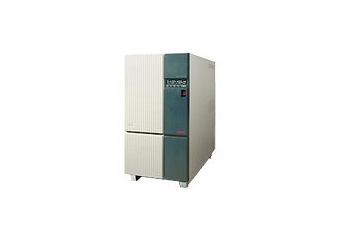

APC Smart-UPS DP 10000 - UPS - 10 kW - 10000 VA
|
Enhedstype
|
UPS - Power Factor Correction (PFC) - ekstern
|
Vægt
|
138 kg
|
Indgangspænding
|
AC 230 V
|
Udgangspænding
|
AC 220/230/240 V ± 5%
|
Strømkapacitet
|
10 kW / 10000 VA
|
Input-stik
|
3 x hardwire
|
Output-stikforbindelser
|
3 x hardwire
|
Batteri
|
Blysyre
|
Driftstid (op til)
|
5.5 min ved fuld belastning
|
Farve
|
Beige
|
Dimensioner (B x D x H)
|
30.5 cm x 61 cm x 66 cm
|
Producentgaranti
|
2 års garanti
|
Produktdatablad |
|
Enhedstype |
UPS - Power Factor Correction (PFC) - ekstern |
Farve |
Beige |
UPS-teknologi |
On-line |
Understøttet batteriteknologi |
Blysyre |
Indgangspænding |
AC 230 V |
Indgangspændingsområde |
AC 195 - 253 V |
Med frekvens |
47 - 53 Hz |
Nødvendig frekvens |
50 Hz |
Input-stik |
3 x hardwire |
Detaljer om strømudgangskonnektorer |
3 x hardwire |
Udgangspænding |
AC 220/230/240 V ± 5% - 47 - 53 Hz |
Strømkapacitet |
10 kW / 10000 VA |
Bølgeform udgang |
Sinewave |
Overspændingsafledning |
Ja |
Teknologi |
Blysyre |
Run Time (op til) |
5.5 min. ved fuld last |
Interface |
1 x administration (RS-232) - 9-pin D-Sub (DB-9) |
Ekspansionsåbninger |
1 (total) / 1 (fri) x SmartSlot |
Medfølgende ledninger |
Serielt kabel - ekstern |
Egenskaber |
Nødstrøm slukket, LED-skærm, hørbar alarm |
Overensstemmelsesstandarder |
C-Tick, VDE |
Med software |
Drivers & Utilities, APC PowerChute Smart-UPS DP Bundle |
Service & Support |
Begrænset garanti - 2 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
40 °C |
Min. lagertemperatur |
-15 °C |
Maks. Opbevaringstemperatur |
45 °C |
Fugtighedsgrad ved brug |
0 - 95% |
Lagerfugtighedsgrad |
0 - 95% |
Bredde |
30.5 cm |
Dybde |
61 cm |
Højde |
66 cm |
Vægt |
138 kg |
Smart-UPS DP protects your data by continuously supplying network-grade power regardless of the input power. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. SmartSlot internal accessory slot allows you to install optional accessories to enhance the performance of your UPS. APC Smart-UPS DP is the perfect UPS for multiple fileservers, minicomputers, UNIX CPU's, server farms, small mainframes, electronic control systems, telecommunications systems and other mission-critical applications.
All Smart-UPS DP models allow for expanding runtime by simply plugging in additional matching battery packs.
Smart-UPS DP models can be configured with an external wall mounted maintenance bypass for high availability applications.
