| Produktbeskrivelse
|

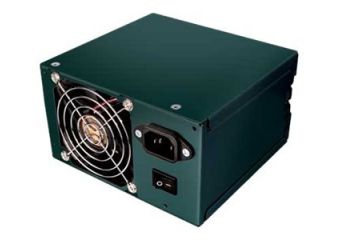

Antec EarthWatts EA-380D Green - strømforsyning - 380 Watt
|
| Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
| Specifikationsoverensstemmelse
|
ATX12V 2.3
|
| 80 PLUS certificering
|
80 PLUS Bronze
|
| Vægt
|
1.6 kg
|
| Indgangspænding
|
AC 100-240 V
|
| Strømkapacitet
|
380 Watt
|
| Output Current
|
+5V 20 A ¦ +3.3V 20 A ¦ +12V1 17 A ¦ +12V2 15 A ¦ -12V 0.8 A ¦ +5VSB 2.5 A
|
| Output-stikforbindelser
|
1 x 6 pin PCI Express-strøm ¦ 5 x 15 pin Serial ATA strøm ¦ 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion ¦ 1 x strøm 24 pin ATX med aftagelig 4 pin sektion ¦ 4 x 4-PIN intern strøm ¦ 1 x 4-PIN mini-strømforsyningsforbinder
|
| Kølesystem
|
80 mm ventilator
|
| Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.6 cm
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse |
ATX12V 2.3 |
| PSU formfaktor |
ATX |
| Indgangspænding |
AC 100-240 V |
| Margen til Indgangspænding |
± 10% |
| Nødvendig frekvens |
47 - 63 Hz |
| Detaljer om strømudgangskonnektorer |
1 x 6 pin PCI Express-strøm ¦ 5 x 15 pin Serial ATA strøm ¦ 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion ¦ 1 x strøm 24 pin ATX med aftagelig 4 pin sektion ¦ 4 x 4-PIN intern strøm ¦ 1 x 4-PIN mini-strømforsyningsforbinder |
| Strømkapacitet |
380 Watt |
| Output Current |
+5V 20 A ¦ +3.3V 20 A ¦ +12V1 17 A ¦ +12V2 15 A ¦ -12V 0.8 A ¦ +5VSB 2.5 A |
| 80 PLUS certificering |
80 PLUS Bronze |
| Kølesystem |
80 mm ventilator |
| Egenskaber |
Beskyttelse mod overstrøm, overspændingsbeskyttelse, kortslutnings beskyttelse |
| Overensstemmelsesstandarder |
UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS |
| Service & Support |
Begrænset garanti - reservedele og arbejdskraft - 3 år |
| Min. driftstemperatur |
10 °C |
| Maks. driftstemperatur |
50 °C |
| Bredde |
15 cm |
| Dybde |
14 cm |
| Højde |
8.6 cm |
| Vægt |
1.6 kg |
Get more power and lower your electric bill with the EarthWatts Green series! One of the most environmentally-friendly power supplies available, the EarthWatts EA-380D Green efficiently delivers 380-watt of reliable and stable power while meeting the bronze level of efficiency from 80 Plus, the most widely recognized independent standard in power supply efficiency. On top of that, this EarthWatts power supply boasts universal input to automatically work on any power grid on the planet, and an 80mm fan to keep cool. Get the power you need, save money and help protect the environment with Antec's EA-380D Green!
