| Produktbeskrivelse
|

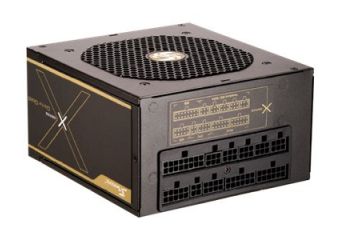

Seasonic X-650 - strømforsyning - 650 Watt
|
| Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
| Specifikationsoverensstemmelse
|
ATX12V / EPS12V
|
| 80 PLUS certificering
|
80 PLUS Gold
|
| Udgangspænding
|
+3.3, +5, ±12 V
|
| Strømkapacitet
|
650 Watt
|
| Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion ¦ 1 x effekt ATX12V 4-pin stik ¦ 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion ¦ 8 x 4-PIN intern strøm ¦ 8 x 15 pin Serial ATA strøm ¦ 2 x 4-PIN mini-strømforsyningsforbinder ¦ 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
|
| Dimensioner (B x D x H)
|
15 cm x 16 cm x 8.6 cm
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse |
ATX12V / EPS12V |
| PSU formfaktor |
ATX |
| Detaljer om strømudgangskonnektorer |
1 x strøm 24 pin ATX med aftagelig 4 pin sektion ¦ 1 x effekt ATX12V 4-pin stik ¦ 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion ¦ 8 x 4-PIN intern strøm ¦ 8 x 15 pin Serial ATA strøm ¦ 2 x 4-PIN mini-strømforsyningsforbinder ¦ 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion |
| Udgangspænding |
+3.3, +5, ±12 V |
| Strømkapacitet |
650 Watt |
| Output Current |
+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 54 A ¦ -12V - 1 A ¦ +5VSB - 3 A |
| 80 PLUS certificering |
80 PLUS Gold |
| Egenskaber |
SLI klar, køleventilator, Hybrid Silent Fan Control, Multi-GPU Technologies Supported |
| Overensstemmelsesstandarder |
TUV, C-Tick, BSMI, PCT, SEMKO, CB, FCC, RoHS, GOST-R, cTUVus |
| Service & Support |
Begrænset garanti - 5 år |
| Bredde |
15 cm |
| Dybde |
16 cm |
| Højde |
8.6 cm |
Featuring a patent pending design of "DC Connector Module with Integrated VRM", the X Series is set to achieve both near-perfect DC to DC conversion and fully modularized design without compromising efficiency. After a long wait, finally there is a product that delivers the complete package, ultra-high efficiency, greatly improved dynamic response, and customizable cable arrangement that is tailored to meet any individual's needs.
As a leading provider of silent power supply, Seasonic this time around delivers a true breakthrough solution for thermal and noise management. The X Series adopts a clever "Hybrid Silent Fan Control" design, which offers three distinct operation modes, fanless mode, silent mode, and cooling mode. The X automatically adjusts fan mode and speed according to the ambient temperature level. This design not only optimizes heat dissipation, but also prolongs lifespan of the system by reducing unnecessary fan rotation.
