| Produktbeskrivelse
|

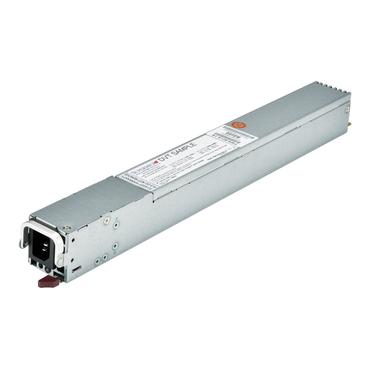

Supermicro PWS-1K05A-1R - strømforsyning - redundant - 1000 Watt
|
| Enhedstype
|
Strømforsyning - redundant - aktiv Power Factor Correction (PFC) - indstiksmodul
|
| Rackstørrelse
|
1U
|
| 80 PLUS certificering
|
80 PLUS Titanium
|
| Vægt
|
880 g
|
| Indgangspænding
|
AC 100-127/200-240 V
|
| Strømkapacitet
|
1000 Watt
|
| Dimensioner (B x D x H)
|
3.8 cm x 36 cm x 4 cm
|
| Producentgaranti
|
1 års garanti
|
| Designet for
|
SuperServer 1028TP-DC0TR, 1028TP-DC1FR, 1029TP-DC1R, 1029TP-DTR
|
Produktdatablad |
|
| Enhedstype |
Strømforsyning - redundant - aktiv Power Factor Correction (PFC) - indstiksmodul |
| Højde (rackenheder) |
1U |
| Indgangspænding |
AC 100-127/200-240 V |
| Nødvendig frekvens |
50 - 60 Hz |
| Strømkapacitet |
1000 Watt |
| Output Current |
+5VSB - 4 A ¦ +12V (for 200-240Vac) - 83 A ¦ +12V (for 100-127Vac) - 66.7 A |
| Effektivitet |
91% |
| 80 PLUS certificering |
80 PLUS Titanium |
| MTBF (forventet tid mellem fejl) |
2,000,000 timer |
| Egenskaber |
Beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, termisk beskyttelse, PMBus kompatibel |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret, BSMI, CB, CCC, RoHS, UL 60950-1, RoHS, REACH, IEC60950-1, cRUus, EMI Class A |
| Service & Support |
Begrænset garanti - 1 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
50 °C |
| Fugtighedsgrad ved brug |
20 - 90 % (ikke-kondenserende) |
| Bredde |
3.8 cm |
| Dybde |
36 cm |
| Højde |
4 cm |
| Vægt |
880 g |
| Designet for |
Supermicro SuperServer 1028TP-DC0TR, 1028TP-DC1FR, 1029TP-DC1R, 1029TP-DTR |
The Supermicro PWS-1K05A-1R is an 80 Plus Titanium power supply capable of supplying 1000W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
