Produktdatablad |
|
| Produkttype |

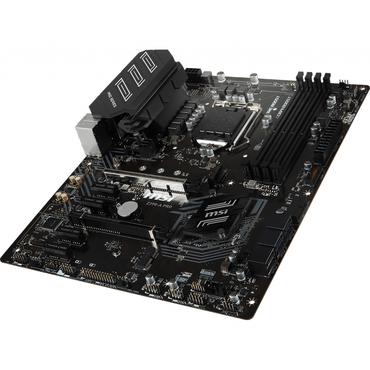

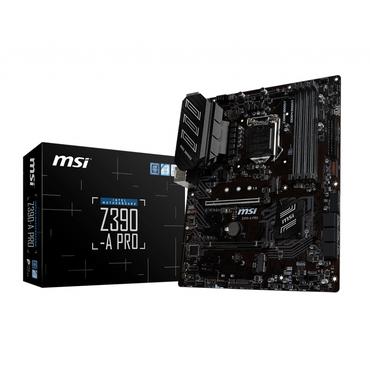

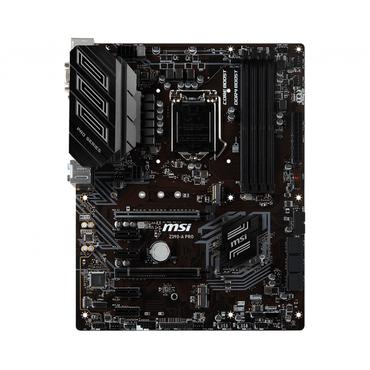

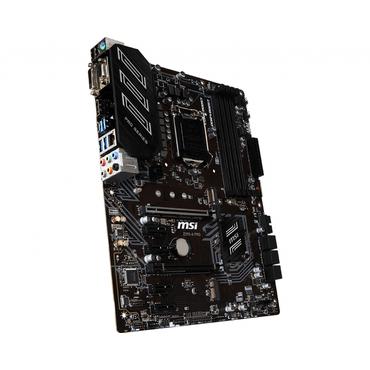

Bundkort - ATX |
| Chipsættype |
Intel Z390 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron) |
| Maks. størrelse |
128 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC892 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 ¦ 4 x PCIe 3.0 x1 ¦ 1 x M.2 socket (til Intel CNVi trådløst modul) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |

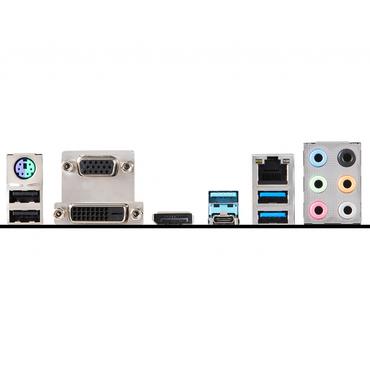

2 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x PS/2-tastatur/mus ¦ 1 x DVI-D ¦ 1 x DisplayPort ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x VGA |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.1 Gen 1 - intern stik ¦ 1 x seriel - intern stik ¦ 1 x audio - intern stik ¦ 1 x parallel - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 6-pins ATX12V stikforbindelse |
| BIOS-egenskaber |
MSI ClickBIOS 5 |
| Hardware egenskaber |
AMD CrossFireX-teknologisupport, MSI Audio Boost, Debug LED, Turbo M.2, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, MSI Core Boost, Extended Heatsink Design |

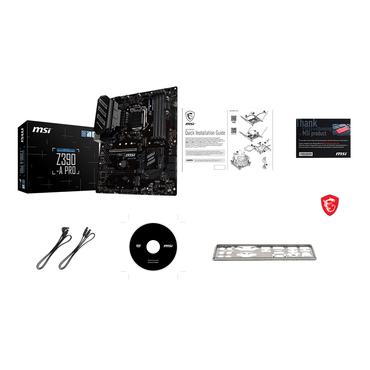

| Udstyr inkluderet |
I/O- bagvæg |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
Drivers & Utilities, MSI Dragon Center |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
