Processor
| Processorproducent |
Intel |
| Processor sokkel |
LGA 1150 (stik H3) |
| Kompatibel processor serie |
Intel® Celeron®, Intel® Pentium® |
Hukommelse
| Understøttede hukommelsestyper |
DDR3-SDRAM |
| Hukommelses slots type |
DIMM |
| Understøttede hukommelsesclock-hastigheder |
1333,1600,1866,2000,2133,2200,2250,2400,2600,2666,2800,2933,3000 MHz |
Lagring controllers
| Understøttede lagerdrev brugerflader |
SATA III |
| RAID-niveauer |
0, 1, 5, 10 |
Grafik
| Understøttelse af parallel behandlingsteknologi |
Quad-GPU CrossFireX |
Intern I/O
| USB 2.0-stik |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik |
1 |
| Antal SATA III-stik |
6 |
| Antal SATA stik |
6 |
| S/PDIF-udgangsstik |
Ja |
| Lydstik på frontpanel |
Ja |
| Anal EATX-strømstik |
1 |
| CPU-ventilatorstik |
Ja |
| Antal kabinetventilatorstik |
2 |
| Antal COM-stik |
1 |
| TPM-stik |
Ja |

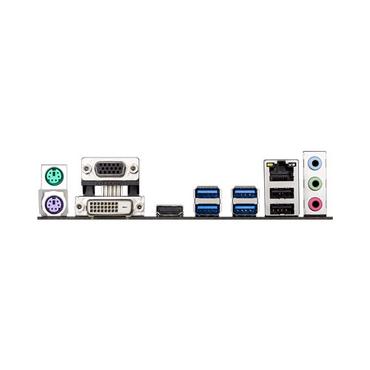

Bagpanel I/O porte
| Antal USB 2.0-porte |
2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte |
4 |
| Ethernet LAN-porte (RJ-45) |
1 |
| Antal PS/2-porte |
2 |
| Antal VGA-porte (D-sub) |
1 |
| Antal HDMI-porte |
1 |
| Antal DVI-D-porte |
1 |
Netværk
| Ethernet LAN |
Ja |
| Ethernet-grænsefladetype |
Gigabit Ethernet |
Funktioner
| Bundkort chipsæt |
Intel® Z97 |
| Lyd-output kanaler |
7.1 kanaler |
| Komponent til |
PC |
| Motherboard form faktor |
ATX |
| Strømkilde type |
ATX |
| Bundkort chipset familie |
Intel |
Udvidelsessokler
| PCI Ekspres x1 (Gen 2.x) slots |
2 |
| PCI Express x16 slots |
2 |
| PCI Ekspres x16 (Gen 2.x) slots |
1 |
| PCI Ekspres x16 (Gen 3.x) slots |
1 |
| PCI-slots |
2 |
BIOS
| BIOS-type |
UEFI AMI |
| BIOS-hukommelsesstørrelse |
64 Mbit |
| ACPI-version |
5.0a |
| Nulstil CMOS-jumper |
Ja |
Vægt & størrelser
| Bredde |
305 mm |
| Dybde |
218 mm |
High-value Z97 ATX is packed with M.2, high-clarity Crystal Sound 2 and enduring 5X protection for enhanced performance and potent entertainment.
ASUS is one of the biggest motherboard manufacturers, and is renowned for the design thinking that revolves around users - just like you. ASUS engineers employ exacting standards to guarantee quality throughout the product's life, choosing the finest components for real-world protection. ASUS motherboards are proven to be compatible with plenty of components and devices, and undergo strict validation. That gives you the peace of mind of knowing that ASUS motherboards are fit for all environments and applications. To build your PC with the best foundations, build it with an ASUS motherboard.
