Processor
| Processorproducent |
Intel |
| Processor sokkel |
LGA 1151 (stik H4) |
| Kompatibel processor serie |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maksimalt antal SMP-processorer |
1 |
Hukommelse
| Understøttede hukommelsestyper |
DDR4-SDRAM |
| Antal hukommelsesstik |
2 |
| Hukommelses slots type |
DIMM |
| Hukommelseskanaler |
To-kanals |
| ECC-kompatibilitet |
NON-ECC |
| Understøttede hukommelsesclock-hastigheder |
2133,2400,2666 MHz |
| Maksimal intern hukommelse |
32 GB |
| Ikke-bufferet hukommelse |
Ja |
Grafik
| Maksimal grafikadapterhukommelse |
1024 MB |
| Grafikadapter familie |
Intel |
| Maksimal opløsning |
4096 x 2304 pixel |
Intern I/O
| USB 2.0-stik |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik |
1 |
| Antal SATA III-stik |
4 |
| Lydstik |
Ja |
| Lydstik på frontpanel |
Ja |
| ATX strømstrik (24 stikben) |
Ja |
| Anal EATX-strømstik |
1 |
| CPU-ventilatorstik |
Ja |
| Antal kabinetventilatorstik |
1 |
| 12V strømstik |
Ja |

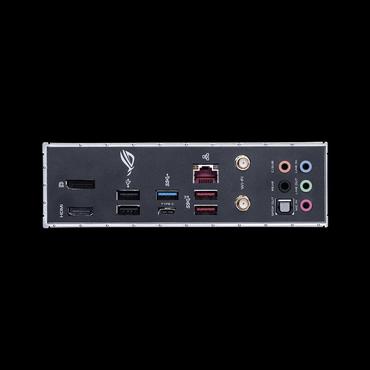

Bagpanel I/O porte
| Antal USB 2.0-porte |
2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte |
1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte |
1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte |
2 |
| Ethernet LAN-porte (RJ-45) |
1 |
| Antal HDMI-porte |
1 |
| HDMI-version |
1.4b |
| Antal DisplayPorts |
1 |
| DisplayPort-version |
1.2 |
| S/PDIF-udgang |
Ja |
Netværk
| Ethernet LAN |
Ja |
| LAN Kontroller |
Intel® I219-V |
| Wake-on-LAN klar |
Ja |
| Wi-Fi |
Ja |
| Wi-Fi-standarder |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth |
Ja |
| Bluetooth-version |
5.0 |
Funktioner
| Bundkort chipsæt |
Intel® B360 |
| Lydchip |
Realtek S1220A |
| Lyd-output kanaler |
7.1 kanaler |
| Komponent til |
PC |
| Motherboard form faktor |
mini ITX |
| Strømkilde type |
ATX |
| Bundkort chipset familie |
Intel |
| Understøttede Windows-operativsystemer |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Udvidelsessokler
| PCI Ekspres x16 (Gen 3.x) slots |
1 |
| Antal M.2 (M) slots |
2 |
BIOS
| BIOS-type |
UEFI AMI |
| BIOS-hukommelsesstørrelse |
128 Mbit |
| ACPI-version |
6.1 |
| Nulstil CMOS-jumper |
Ja |
| System Management BIOS (SMBIOS) version |
3.1 |
| Plug and play |
Ja |
Processor særlige funktioner
| Intel® ekstrem hukommelse profil (XMP) |
Ja |
Logistik data
| Harmoniseret systemkode (HS) |
84733020 |
Vægt & størrelser
| Bredde |
170 mm |
| Dybde |
170 mm |

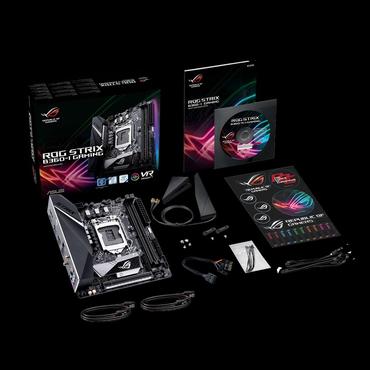

Emballage indhold
| Kabler inkluderet |
SATA |
| Brugervejledning |
Ja |
| Drivere inkluderet |
Ja |
Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination - to create a personalized gaming with immersion that extends from the inside out.
The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.
DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.
Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.
Proper gaming audio built in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices.
Loaded with the latest technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy.
