Produktdatablad |
|
| Produkttype |

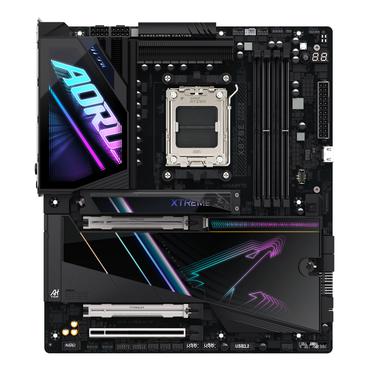

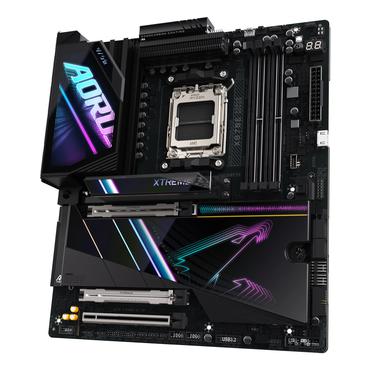

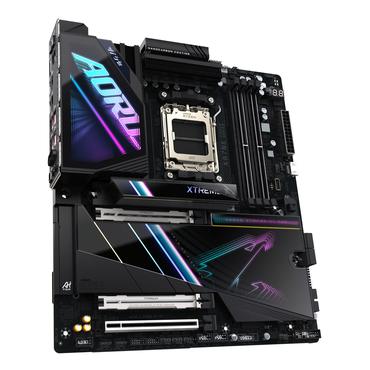

Bundkort - ATX |
| Chipsættype |
AMD X870E |
| Processor-socket |
Socket AM5 |
| Max antal processorer |
1 |
| Kompatible processorer |
(understøtter Ryzen 7000/8000/9000 Serien) |
| Maks. størrelse |
256 GB |
| Teknologi |
DDR5 |
| Bus Clock |
4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC, ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC1220 / ES9118 |
| Overensstemmelsesstandarder |
High Definition Audio, DTS:X Ultra |
| Netværk controller |
Qualcomm Wi-Fi 7 QCNCM865 / Marvell AQtion AQC113C |
| Netværks interfaces |
2 x 10 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8-modus) ¦ 1 x PCIe 4.0 x16 (x2-modus) ¦ 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning) ¦ 3 x M.2 socket (2280/22.110 M.2 Key M-åbning) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interface |

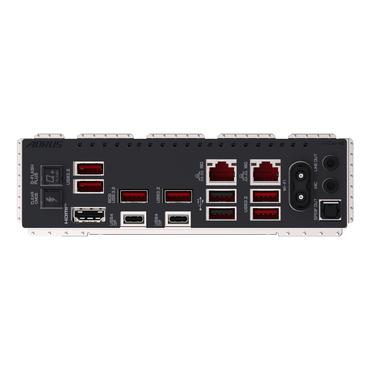

2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x HDMI ¦ 6 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x antenne ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x SPDIF-ud |
| Interne interfaces |
1 x USB-C 3.2 Gen 2x2 - intern stik ¦ 4 x USB 3.2 Gen 1 - intern stik ¦ 4 x USB 2.0 - intern stik ¦ 1 x audio - intern stik ¦ 1 x SPI - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardwareovervågning |
Blæserkontrol, blæserfejlvarsel, blæserhastighedsdetektion, systemspænding, temperaturdetektion |
| Hardware egenskaber |
Q-Flash, Q-Flash Plus, Q-Flash Plus knap, Clear CMOS Button, strømafbryder, reset knap, 18+2+2 Phase Power Design, M.2 EZ Match, WIFI EZ-Plug, I/O Zone AORUS belysning, M.2 EZ Latch klik, M.2 EZ Latch plus, M.2 Thermal Guard XL, PCIe EZ Latch Plus, VRM Thermal Armor Advanced, 2x Copper PCB, 8 Layer PCB, GIGABYTE Smart Fan 6, M.2 Thermal Guard Ext., UD Nanocarbon bagplade, AORUS AI SNATCH, DIY Friendly Design, RGB FUSION, Ultra Durable, VRM kølelegemedesign |
| Udstyr inkluderet |

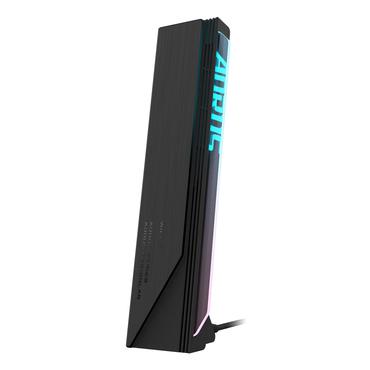

DDR Wind Blade, G-Connector, 4 x termiske puder til M.2 SSD, 2 termistorkabler, noise detection cable, Wi-Fi-antenne, kabelbånd, ESSential USB DAC |
| Medfølgende ledninger |
2 x SATA Express-kabel |
| Med software |
HWiNFO, GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Overensstemmelsesstandarder |
DisplayPort 1.4, HDCP 2.3 |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
