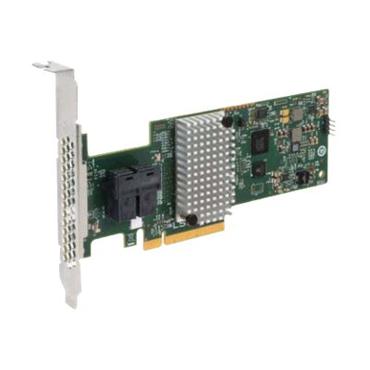

Lenovo N2215 SAS/SATA HBA for IBM System x - lagringskontrol - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
| Enhedstype | Lagringskontrol - indstikskort - lavprofil |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s; 2 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (intern) |
| Dataoverførselshastighed | 12 Gbit/s |
| Understøttede enheder | Harddisk, solid state drev |
| Antal kanaler | 8 |
| RAID-niveau | JBOD |
| Processor | LSI LSISAS3008 |
| Udstyr inkluderet | Beslag i fuld højde |
| Egenskaber | Cyclical Redundancy Check (CRC) |
| Overensstemmelsesstandarder | UL, TUV, VCCI, C-Tick, BSMI, cUL, IEC 60950, EMC, FCC, KC, EMI |
| OS nødvendig | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, SuSE Linux Enterprise Server 11 for x86, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition, Microsoft Windows Server 2012, SuSE Linux Enterprise Server 11 til Intel x86/AMD64/EM64T (32/64 bit), Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 5 Server med Xen x64 Edition, SUSE LINUX Enterprise Server 10 til AMD64/EM64T, SUSE LINUX Enterprise Server 11 med Xen til AMD64/EM64T, VMware vSphere 5.5 (ESXi), VMware vSphere 5.0 (ESXi), Microsoft Windows Server 2008 Datacenter x86 Edition, Microsoft Windows Server 2008 Enterprise x86 Edition, VMware vSphere 6.0 (ESXi), VMware vSphere 5.1 (ESXi) |
| Bredde | 1.7 cm |
| Dybde | 17 cm |
| Højde | 6.9 cm |
| Vægt | 88 g |
| Min. driftstemperatur | 5 °C |
| Maks. driftstemperatur | 40 °C |
| Fugtighedsgrad ved brug | 8 - 93 % (ikke-kondenserende) |
| Designet for | Lenovo NeXtScale nx360 M5 ¦ Lenovo System x3250 M6 ¦ Lenovo System x3500 M4 ¦ Lenovo System x3550 M4 ¦ Lenovo System x3550 M5 ¦ Lenovo System x3650 M4 ¦ Lenovo System x3650 M4 BD ¦ Lenovo System x3650 M4 HD ¦ Lenovo System x3650 M5 ¦ Lenovo System x3750 M4 ¦ Lenovo System x3850 X6 ¦ Lenovo System x3950 X6 |
The N2215 SAS/SATA HBA is an ideal solution for servers, requiring high-speed internal storage connectivity. This eight-port host bus adapter supports direct attachment to SAS and SATA internal hard drives. With a low-profile form-factor design, the N2215 SAS/SATA HBA offers two (x4) internal mini-SAS HD connectors. The N2215 is based on LSI's SAS I/O controller and provides eight lanes of SAS and eight lanes of PCIe 3.0 to eliminate data bottlenecks and provide high data transfer rates for medium- to large-capacity server storage applications.
