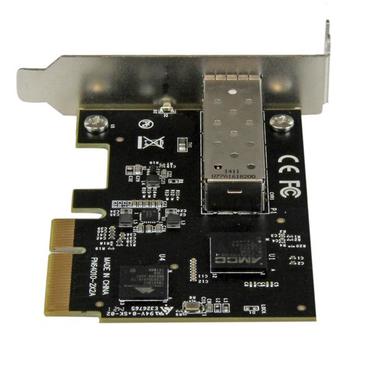

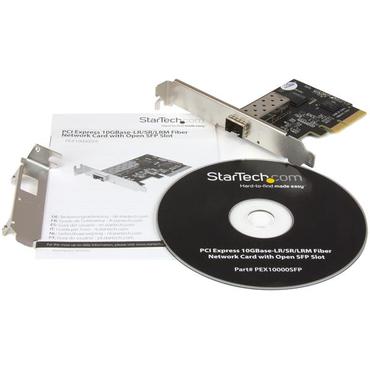

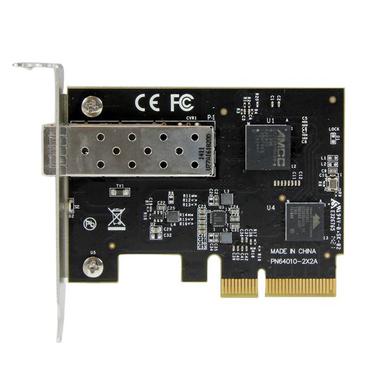

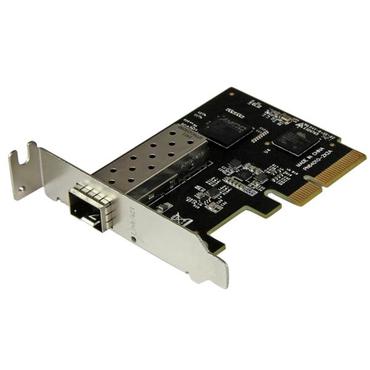

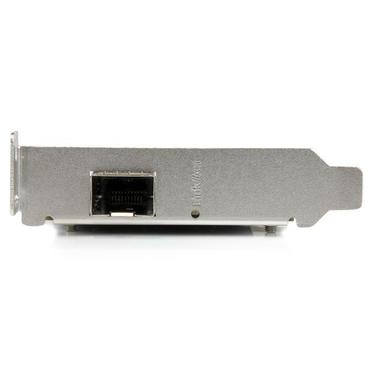

StarTech.com 10Gb SFP+ Network Card
PCIe 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4 10Gb NIC SFP+ Card (PEX10000SFP) - netværksadapter - PCIe 2.0 x4
Porte & Grænseflader
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet / Fiber |
| Fiber optisk strømstik | SFP+ |
| Fiberkanal porte | 1 |
| PCI version | 2.0 |
Netværk
| Maksimal dataoverførselshastighed | 20000 Mbit/s |
| Netværksstandarder | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x |
| Ethernet LAN | Ja |
| Ethernet LAN-datahastigheder | 10000 Mbit/s |
| Fuld duplex | Ja |
| Jumbo Frames support | Ja |
| VLAN mærkning | Ja |
Design
| Produktfarve | Sort |
| Intern | Ja |
| Chipsæt | Tehuti - TN4010, AMCC - QT2025 |
| LED-indikatorer | Aktivitet |
| Certificering | CE, FCC, REACH |
Strømstyring
| Strømforbrug (typisk) | 4,12 W |
Systemkrav
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Understøttede Mac-operativsystemer | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Understøttede Linux-operativsystemer | Ja |
| Andre understøttede operativsystemer | VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5 |
| Understøttede operativsystemer til servere | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Driftsbetingelser
| Driftstemperatur (T-T) | 0 - 70 °C |
| Opbevaringstemperatur (T-T) | -20 - 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Vægt & størrelser
| Bredde | 19 mm |
| Dybde | 83 mm |
| Højde | 120 mm |
| Vægt | 43 g |
Emballeringsdata
| Drivere inkluderet | Ja |
| Pakkebredde | 173 mm |
| Pakkedybde | 144 mm |
| Pakkehøjde | 30 mm |
| Pakkevægt | 145 g |
Emballage indhold
| Monteringsbeslag inkluderet | Ja |
| Brugervejledning | Ja |
Tekniske detaljer
| Compliance-certifikater | RoHS |
Logistik data
| Harmoniseret systemkode (HS) | 85176990 |
Andre funktioner
| Flowkontrol support | Ja |
Scale your network performance using the 10Gb SFP+ transceiver of your choice and connect your PCIe-enabled server to a 10 Gigabit fiber network. The PEX10000SFP 10 Gigabit Fiber Network Card is a cost-effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SFP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network.
With the rising strain on network resources due to large file transfers, multimedia content, and an increase in network users, more bandwidth is often required at various levels of your networking infrastructure. With up to 10 Gbps bandwidth, this fiber NIC lets you transfer more data at faster speeds, and is an ideal low-cost addition to your server or high-powered workstation.
The PEX10000SFP adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP+ slot, and is compatible with most . With broad SFP+ compatibility this cost-effective fiber card lets you use your preferred SFP+ module, giving you more options to connect your computer directly to a fiber network at greater distances.
For improved operating efficiency, the PEX10000SFP features an energy-efficient Tehuti TN4010 chipset that offers significantly reduced power consumption versus most comparable cards, including the Intel 82599 chipset cards. Superior power efficiency also helps minimize heat generated by the card, in turn avoiding an increase in the operating temperature within your server case.
This versatile 10 Gbps network card offers 16K Jumbo Frame and 802.1q VLAN tagging support, as well as compatibility with VMWare ESXi 5.0/5.1, Microsoft Hyper-V virtualization software, and iSCSI support to combine LAN and SAN functions.
