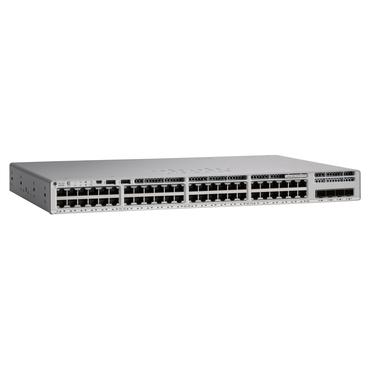

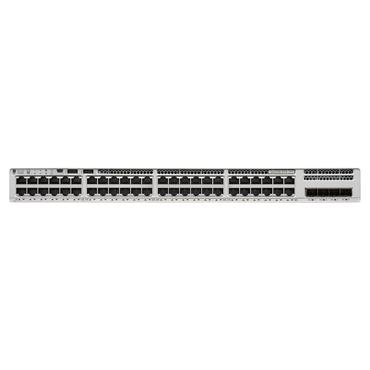

Cisco Catalyst 9200L
Network Advantage - switch - 48 porte - Administreret - monterbar på stativ
Administrationsfunktioner
| Switch-type | Administreret |
| Switch lag | L3 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| MIB support | BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB |
Porte & Grænseflader
| Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal SFP + modulslots | 4 |
| Antal USB 2.0-porte | 3 |
Netværk
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ja |
| Kobber ethernet kabelteknologi | 100BASE-FX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| IP-routing | Ja |
| Routing indtastninger | 3000 |
| IPv4-ruter | 3000 |
| IPv6-ruter | 1500 |
| Spanning tree protokol | Ja |
| Netværk virtualisering teknologier | Virtual Extensible LAN (VXLAN) |
| Antal VLAN'er | 1024 |
Dataoverførsel
| Switch kapacitet | 176 Gbit/sek. |
| Hastighed for videresendelse | 130,95 Mpps |
| MAC adresselabel | 16000 entries |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9198 |
| Pakke bufferlager | 6 MB |
Sikkerhed
| Adgangskontrolliste (ACL) | Ja |
| Sikkerhedsalgoritmer | 128-bit AES |
Multicast funktioner
| Multicast-understøttelse | Ja |
Protokoller
| Administrationsprotokoller | SNMPv1/v2c/v3 |
| Routing-protokoller | CDP, EIGRP, OSPF, RIP, VRRP |
Design
| Stabelbar | Ja |
| Produktfarve | Grå |
| Sikkerhed | IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Elektromagnetisk kompatibilitet | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
Præstation
| Hukommelsestype | DRAM |
| Intern hukommelse | 2048 MB |
| Flashhukommelse | 4096 MB |
| Støjniveau | 42 dB |
| Plug and play | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 346270 t |
Strømstyring
| Strømforsyning inkluderet | Ja |
| Redundant strømforsyning | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Indgangsstrøm | 6 - 12 A |
Power over Ethernet (PoE)
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 48 |
| Power over Ethernet (PoE) effekt pr. port | 30 W |
| Total Power over Ethernet (PoE) | 740 W |
Driftsbetingelser
| Driftstemperatur (T-T) | -5 - 45 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
| Driftshøjde | 0 - 3000 m |
| Varmeafgivelse | 3412 BUT/t |
Vægt & størrelser
| Bredde | 445 mm |
| Dybde | 329 mm |
| Højde | 44 mm |
| Vægt | 4,8 kg |
Godkendelser
| Certificering | RoHS |
Logistik data
| Harmoniseret systemkode (HS) | 85176990 |
