Produktdatablad |
|
| Produkttype |

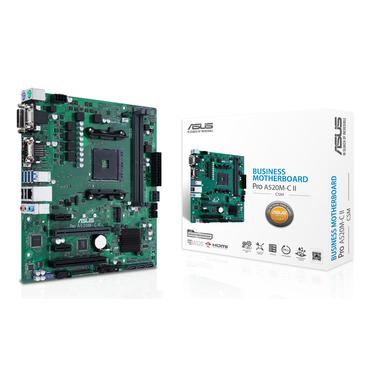

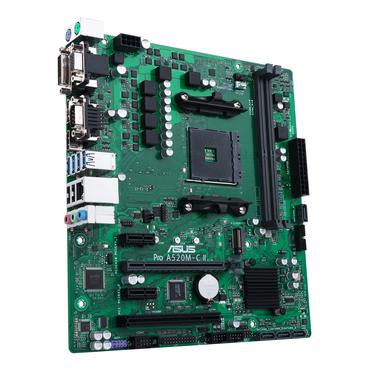

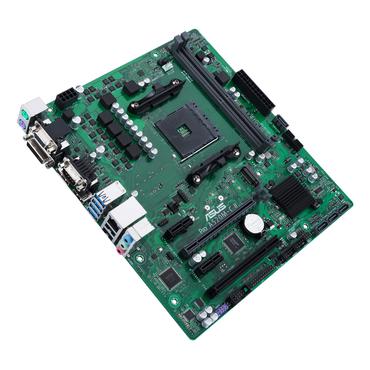

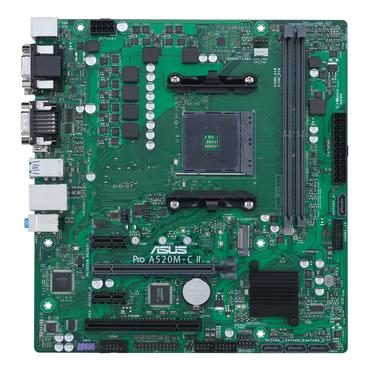

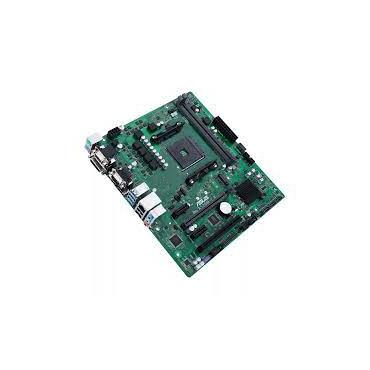

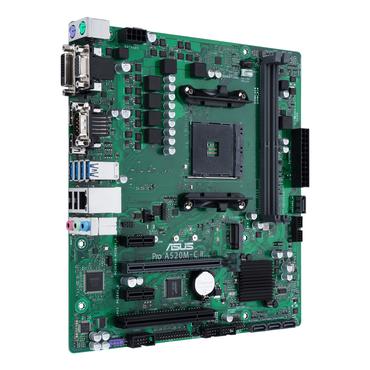

Bundkort - micro-ATX |
| Chipsættype |
AMD A520 |
| Processor-socket |
Socket AM4 |
| Max antal processorer |
1 |
| Kompatible processorer |
Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 4466 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC, ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC897 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |

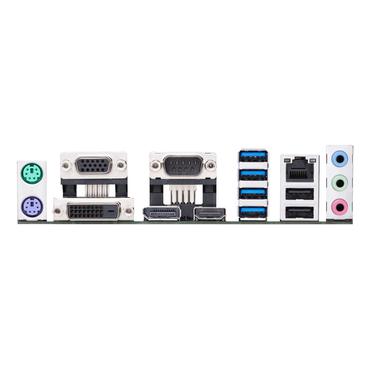

1 x VGA ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x PS/2-tastatur ¦ 1 x PS/2-mus ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x seriel ¦ 1 x DisplayPort |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.2 Gen 1 - intern stik ¦ 1 x seriel - intern stik ¦ 1 x højttaler - intern stik ¦ 1 x audio - intern stik ¦ 1 x LPC - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
UEFI BIOS |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
Chassis intrusion styring, jack retasking, Q-DIMM, ASUS EZ DIY, Q-Slot, audio jack detektions teknologi, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), overstrømsbeskyttelse, LANGuard, Moistureproof PCB, ASUS SafeSlot Core, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM 2.0 IC Onboard |
| Udstyr inkluderet |

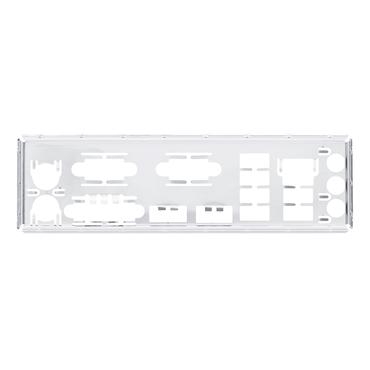

IO-skjold, ACC Express Activation Key Card, M.2 skruepakke |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
ASUS Control Center Express |
| Overensstemmelsesstandarder |
VCCI Class B ITE, JATE, WEEE, KC, FCC Part 15 Class B, EU RoHS, EU REACH |
| Bredde |
24.4 cm |
| Dybde |
22.9 cm |
| Pristype |
ASUS Corporate Stable Model (CSM) |
